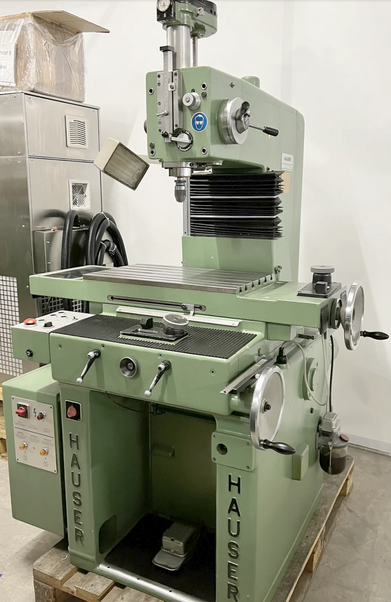

Hauser 3 BA Bore capacity 75 mm 3000 rpm
Ref :
2795454-3-MT
Condition :
Used
Manufacturer :
Hauser
Model :
3 BA
Spindle Size :
Bore capacity 75 mm
Spindle Speed :
3000 rpm
Year(s) :
-
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Table length 550 mm
Table width 320 mm
Number of T-slots 6
T-slot width 10 mm
T-slot pitch 40 mm
X-axis travel 400 mm
Y-axis travel 250 mm
Z-axis travel 400 mm
Table load capacity 400 kg
Drilling capacity in steel 20 mm
Distance table to spindle 590 mm
Spindle taper MT2
Spindle stroke 130 mm
Spindle speed 60 - 3000 rpm
Stepless spindle speeds
Spindle motor 1 CV
Voltage 380 V / 50 Hz / 3 Phase
Rotary table diameter 300 mm
Drill chuck
Set of drill chucks
Centering microscope
Lamp
Machine dimensions 1200 x 1150 x 1750 mm
Machine weight 1100 kg
