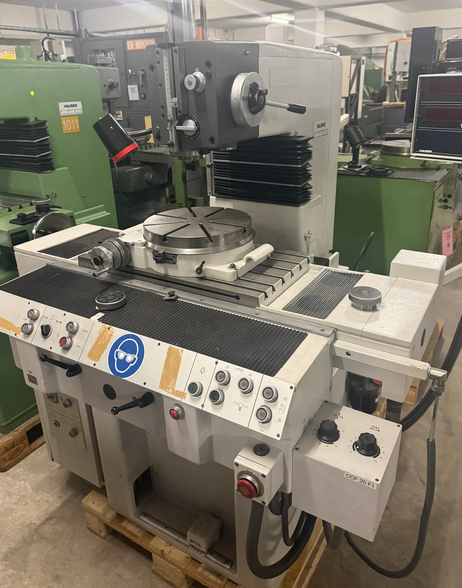

Hauser 3 DR Maximum bore diameter: 75 mm 3000 rpm

Table length: 550 mm
Table width: 320 mm
Table load max: 400 kg
X-axis travel: 400 mm
Y-axis travel: 250 mm
Z-axis travel: 400 mm
Drill capacity in steel: 20 mm
Distance table to spindle: 590 mm
Spindle taper: MT 2
Spindle stroke: 130 mm
Spindle speed range: 60–3000 rpm
Number of feed steps: 2
Spindle motor power: 1 CV
Voltage: 3×380 V, 50 Hz
Machine weight: ~1100 kg
Machine dimensions (L×W×H): 1200 × 1150 × 1650 mm
3-axis digital readout system
Digital readout manufacturer: PHILIPS
Rotary table diameter: 380 mm
Jig boring machine type
High precision boring design
Suitable for automotive, aerospace, watchmaking and medical applications
