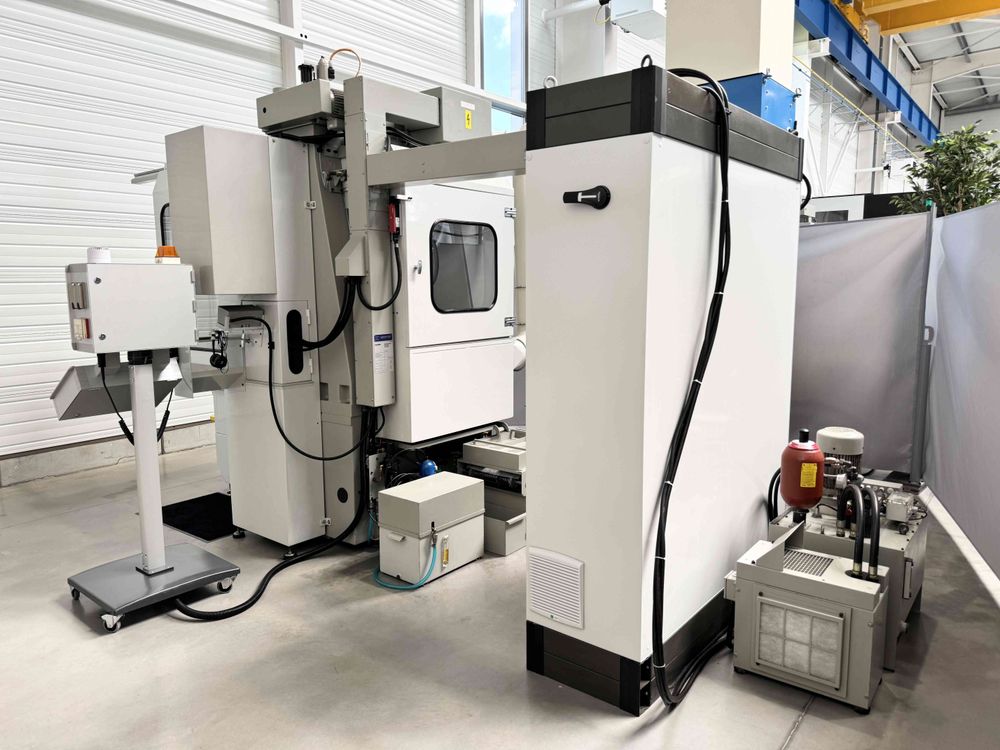

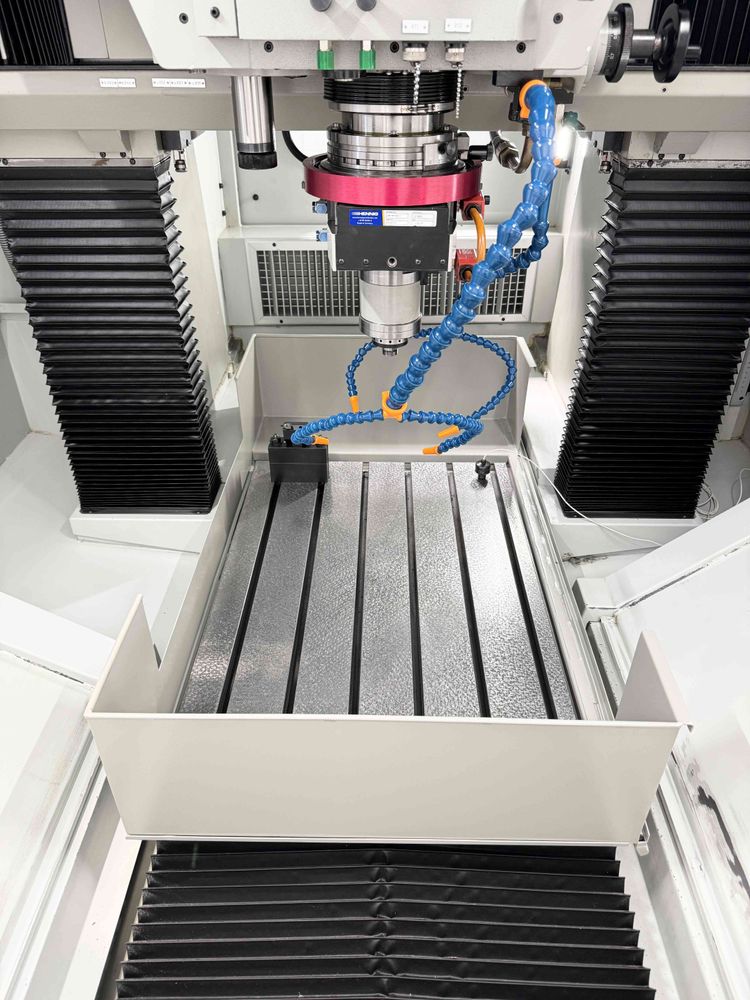

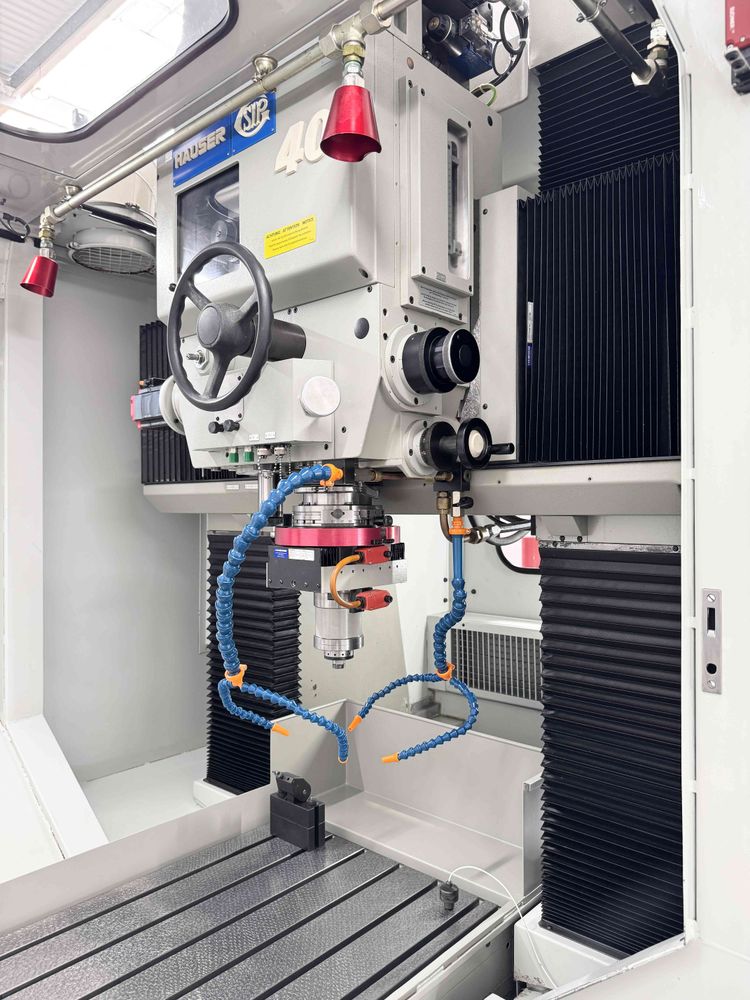

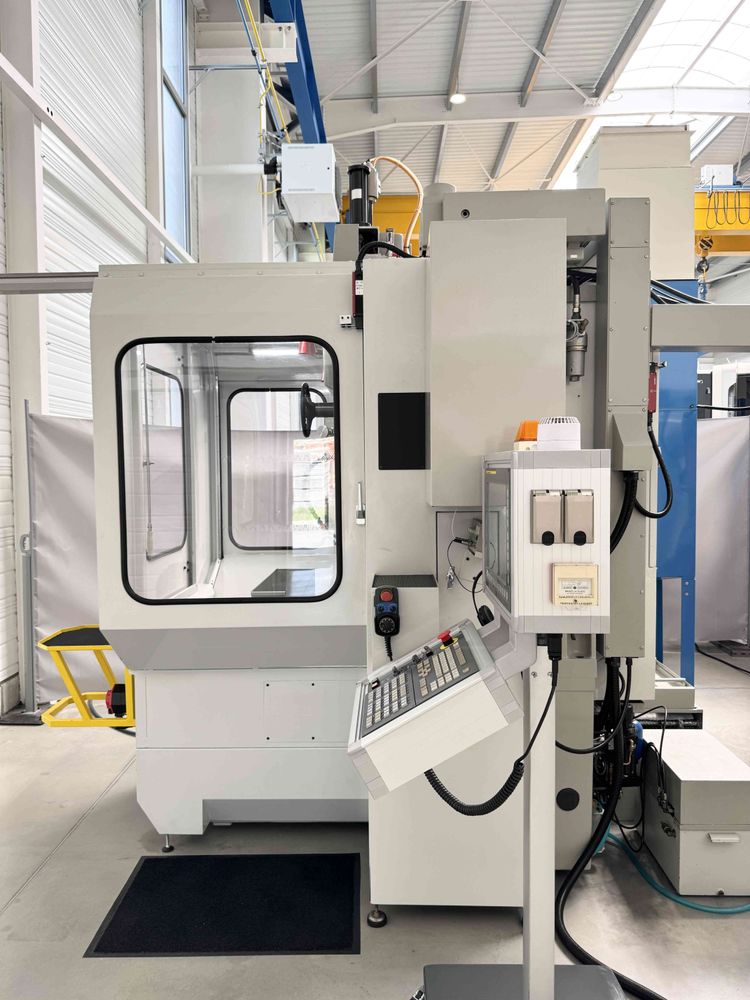

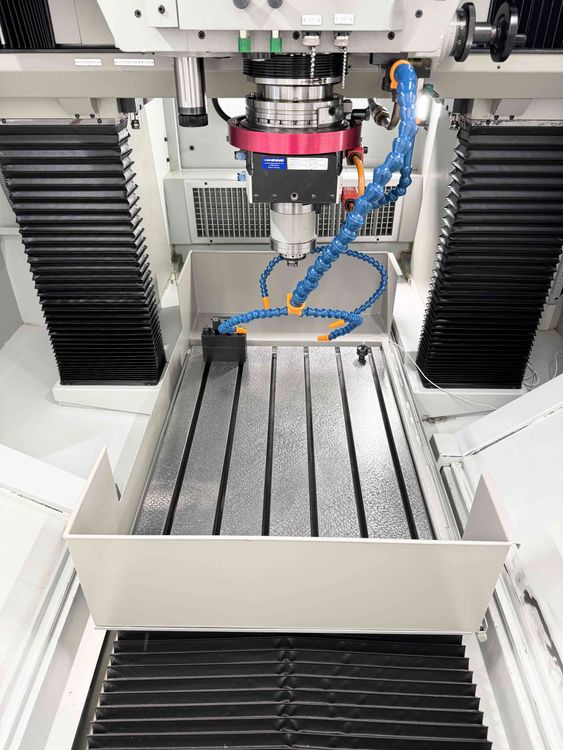

CNC JIG GRINDING MACHINE HAUSER S40-400
NC control completely retroffited in 2020.
TECHNICAL CHARACTERISTICS :
Stroke X axis: 650 [mm]
Max. Stroke speed X axis: 4000 [mm/min]
Working feed X axis: 0 - 1800 [mm/min]
Stroke Y axis: 450 [mm]
Working feed Y axis: 0 - 1800 [mm/min]
Stroke Z axis: 130 [mm]
Min. Stroke speed Z axis: 0.5 [mm/min]
Max. Stroke speed Z axis: 12000 [mm/min]
Stroke frequency Z axis: max. 4 [Hz]
Stroke W axis: 500 [mm]
Planetary speed C axis: 5 - 250 [rpm]
Max. Stroke speed W axis: 800 [mm/min]
Stroke U axis (radial feed): 5.5 [mm]
Distance between columns: 750 [mm]
Table length: 770 [mm]
Table width: 630 [mm]
Clearance between grinding motor and table: 585 [mm]
Max. load on table: 500 [Kg]
Supply voltage: 400 [V]
Weight: 4550 [Kg]
INCLUDED EQUIPMENT:

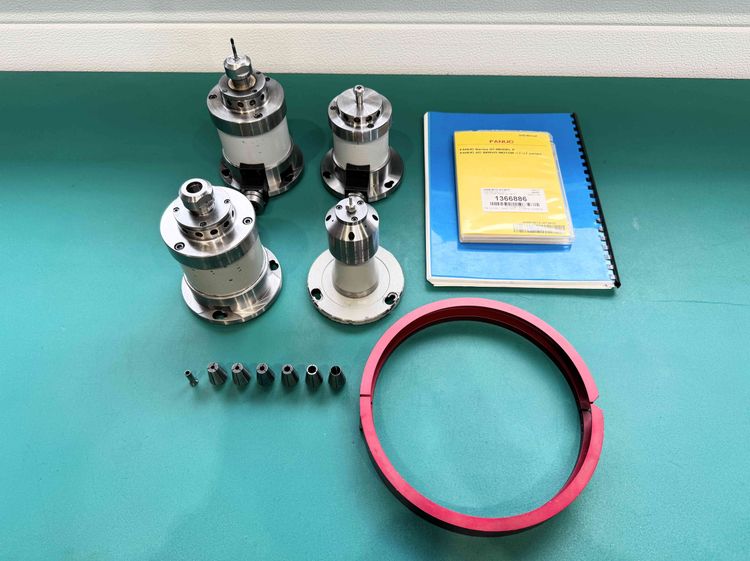

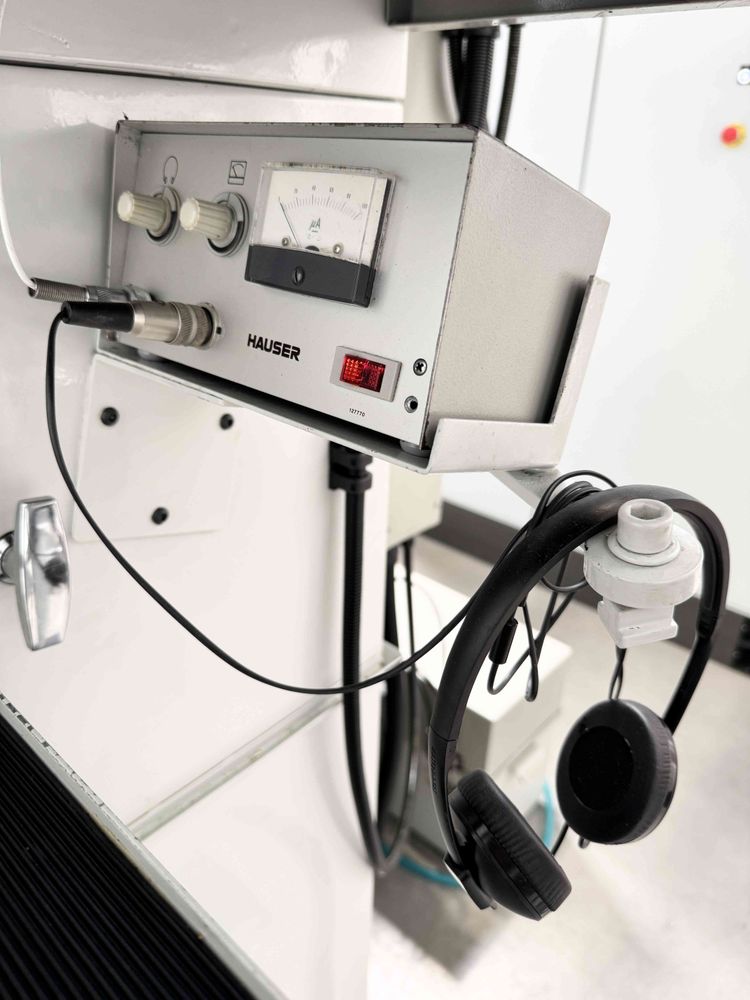

1 tool detection device
1 DONALDSON oil mist extraction unit DMC-D1,
2 45 S grinding motors, speed 9000 - 4500 [rpm] - reference: 144017,
1 80 S grinding motor, speed 40000 - 80000 [rpm] - reference: 144021,
1 T10 grinding turbine, speed: 100,000 [rpm] - reference: 157420,
1 turbine holder with filter - reference: 166497,
1 profile dresser on table, 200 [°] pivotable - reference: 194590
1 coolant tank + paper tape filtration device
6 collets,
1 operator's manual in French.
RETROFIT WORK CARRIED OUT IN 2020:
ELECTRICAL SECTION:

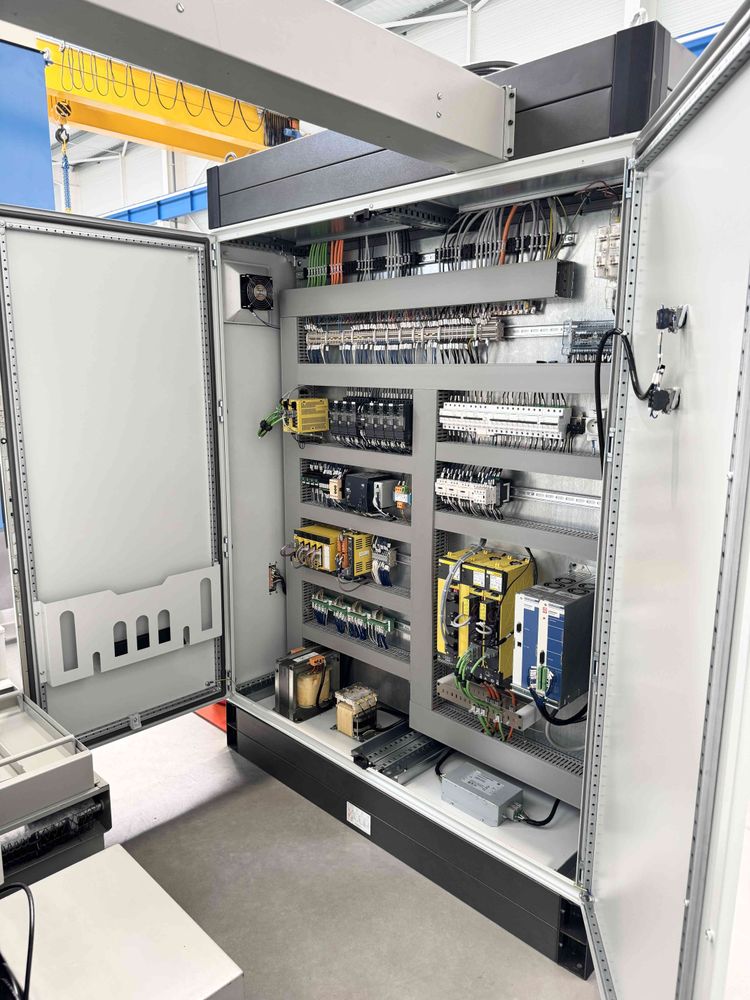

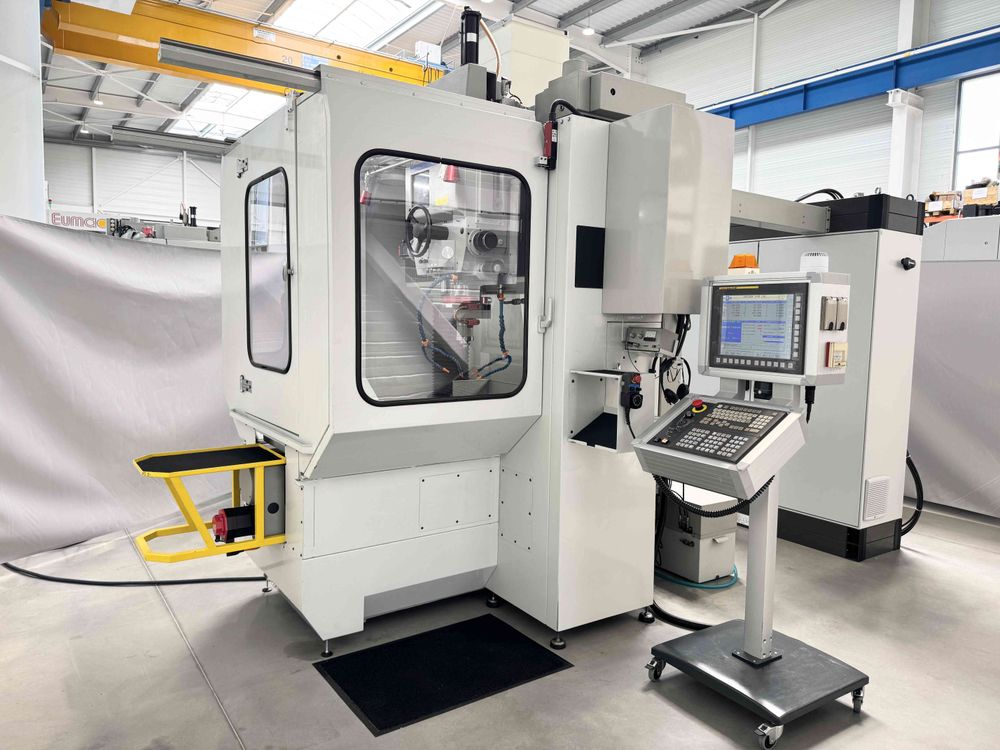

Supply of an electrical cabinet equipped with a FANUC 0iF numerical control,

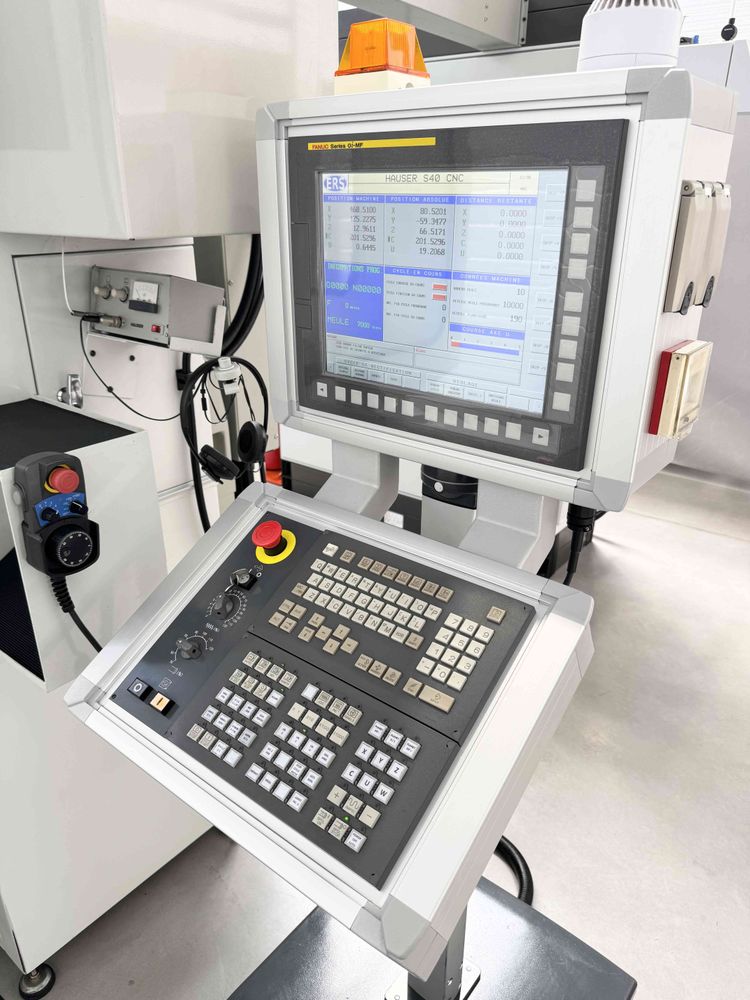

Supply of a control panel for FANUC with 15" screen and keyboard,
Axes controlled by the numerical control: X, Y, Z, C, and U,
Wiring of the electrical cabinet,
Machine wiring with replacement of all sensors and cables,
Connection and powering of the electrical cabinet,
Adjustment of axis servos,
Installation and programming of cycles and conversational pages for HAUSER.
MECHANICAL SECTION:
Supply of axis motor adapters,
Supply of an electrical rotary joint,

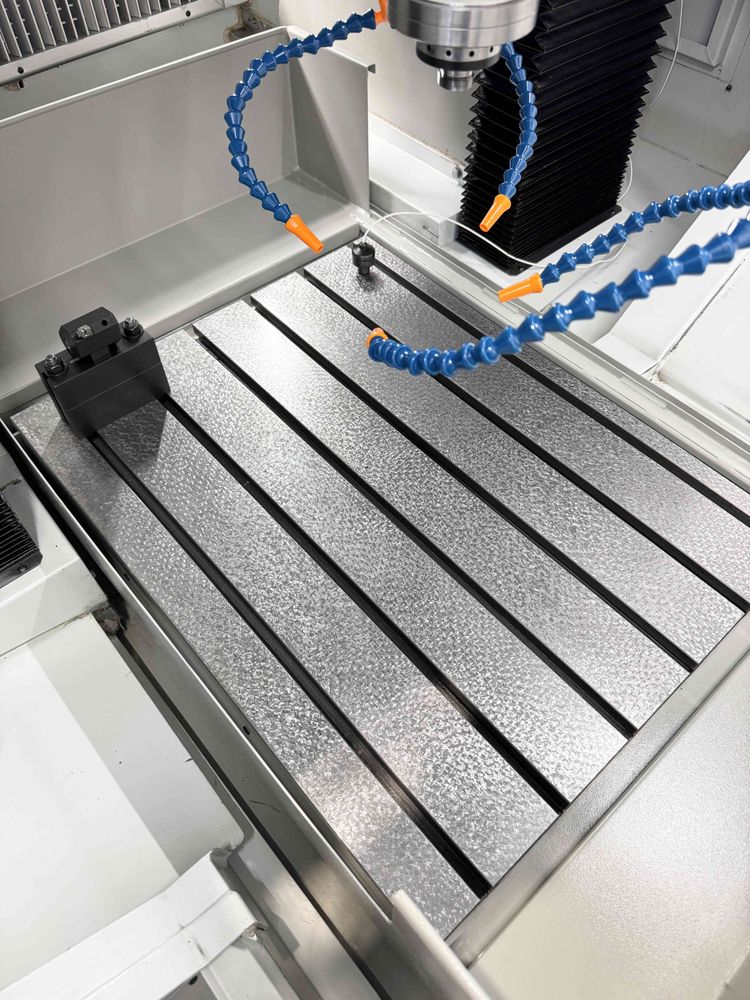

Scraping of the table surface,
Reassembly of the entire head and adaptation of the Fanuc motors on the C and U axes,
Installation of all measuring systems (including 2 HEIDENHAIN linear glass scales on the X and Y axes).
ADDITIONAL CYCLE DEVELOPMENT:
Development of a Blind Bore cycle and associated conversational pages,
Modification of the conversational programming for the U axis: changing from piece diameter programming to radius programming in all existing
grinding cycles,
Modification of wheel data to be entered by radius instead of diameter,
Modification of all wheel dressing cycles, straight, shapes, and ISO,
Modification of all dressing compensations in all grinding cycles.
Machine visible under power in our premises by appointment.
Price on request, loading on truck included.
Possibility of shipping Worldwide.
