Hauser S40-400

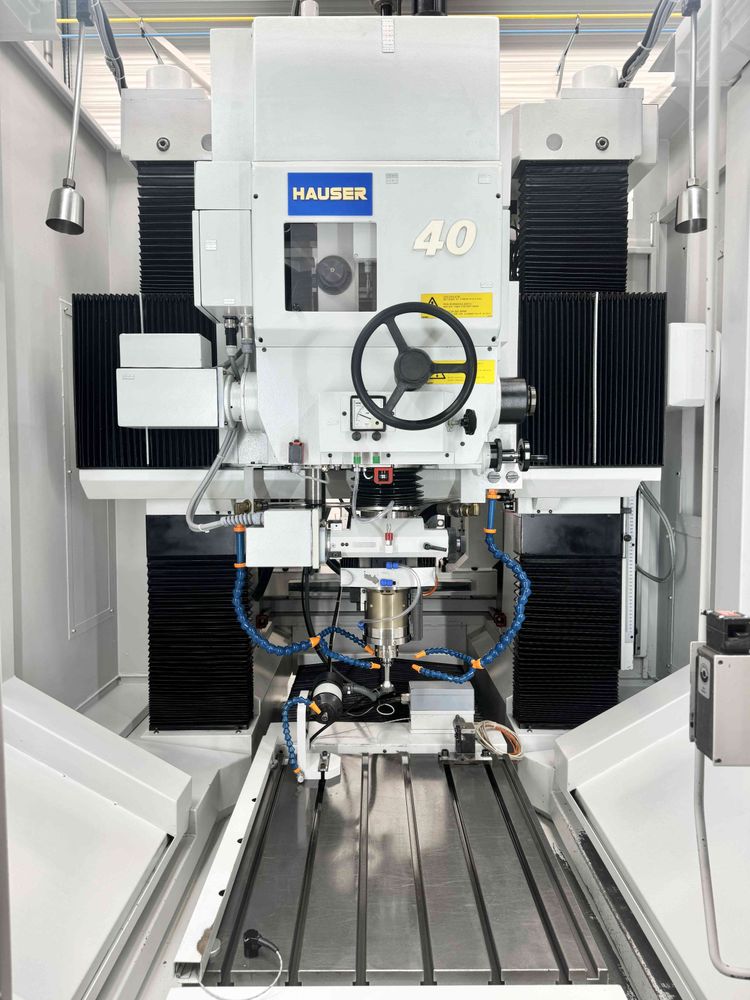

CNC JIG GRINDING MACHINE HAUSER S40-400



TECHNICAL CHARACTERISTICS :

Stroke X axis: 650 [mm]
Max. Stroke speed X axis: 4000 [mm/min]
Working feed X axis: 0 - 1800 [mm/min]
Stroke Y axis: 450 [mm]
Working feed Y axis: 0 - 1800 [mm/min]
Stroke Z axis: 130 [mm]
Min. Stroke speed Z axis: 0.5 [mm/min]
Max. Stroke speed Z axis: 12000 [mm/min]
Stroke frequency Z axis: max. 4 [Hz]
Stroke W axis: 500 [mm]
Planetary speed C axis: 5 - 250 [rpm]
Max. Stroke speed W axis: 800 [mm/min]
Stroke U axis (radial feed): 5.5 [mm]
Distance between columns: 750 [mm]
Table length: 770 [mm]
Table width: 630 [mm]
Clearance between grinding motor and table: 585 [mm]
Max. load on table: 500 [Kg]
Supply voltage: 400 [V]
Weight: 4550 [Kg]


ADDITIONAL INFORMATION :

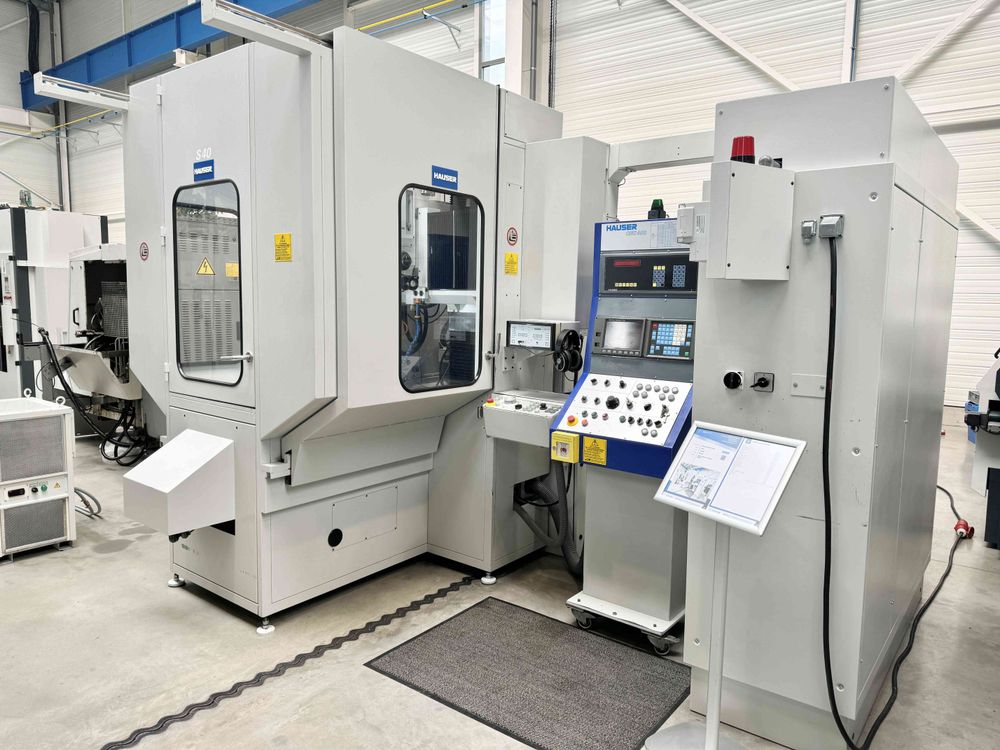

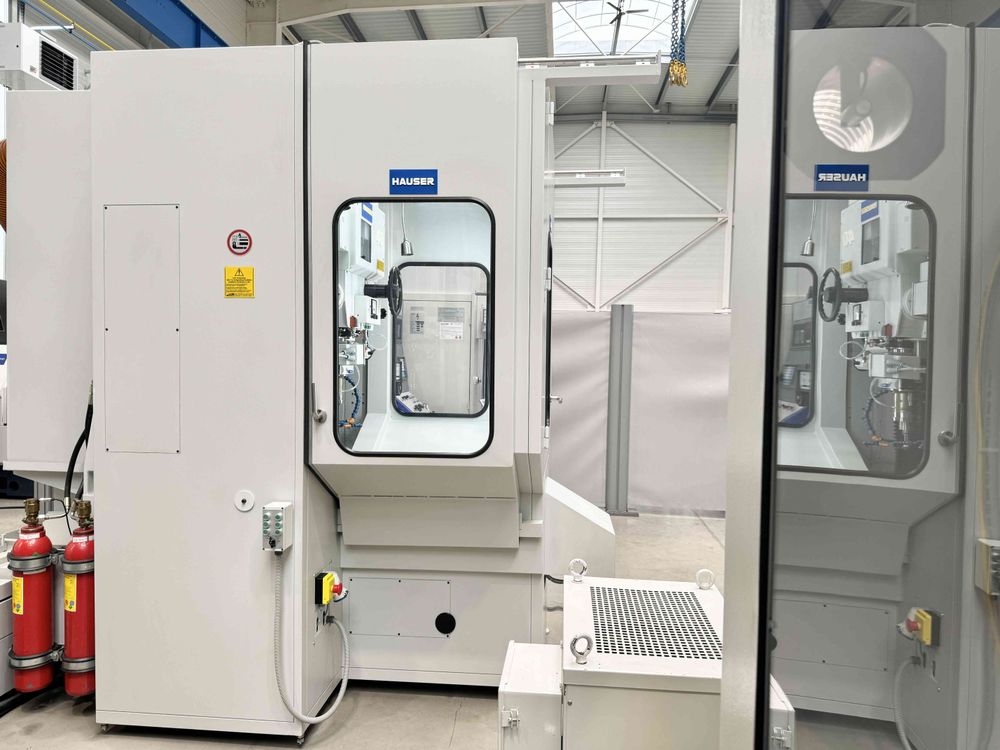

x1 HI-CUT pack including:

-work area protection

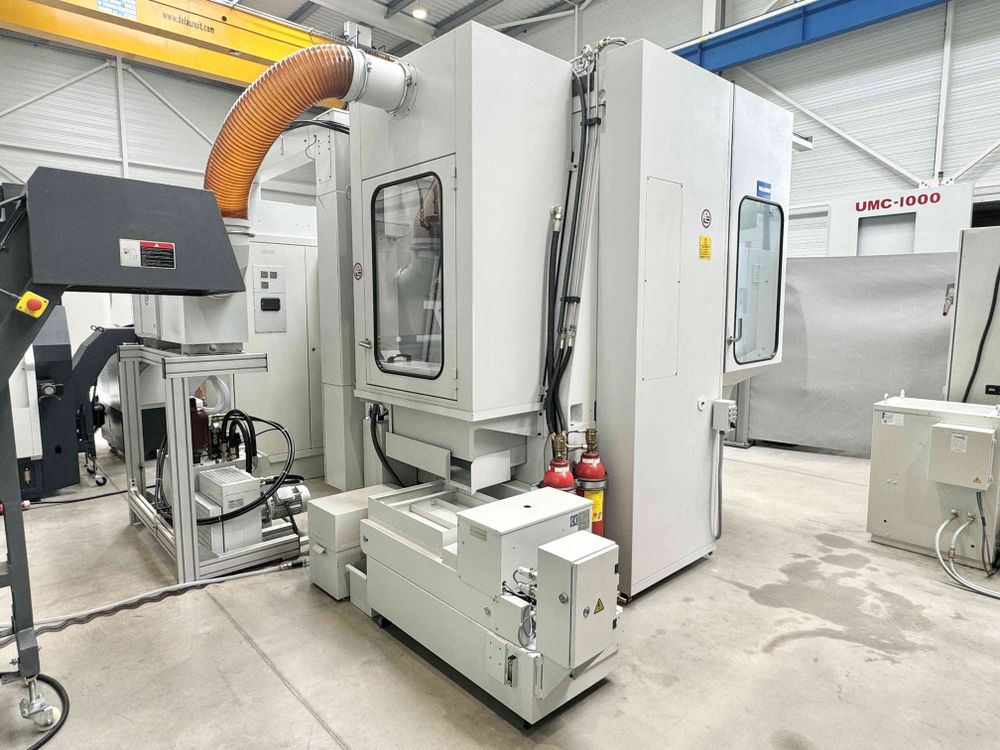

-exhaust system with electrostatic air filter
-fire protection system (to be assessed by a qualified body)

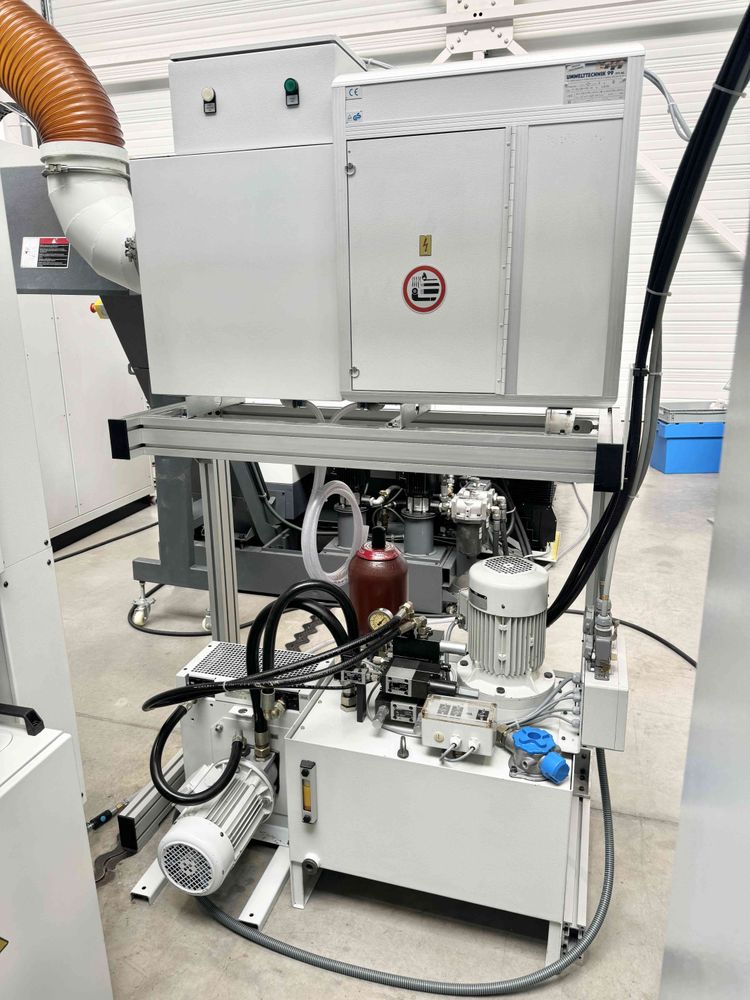

-HTG-RWS-60 automatic belt filter cooling unit

x1 MSS (Multi-Sensoric System) tool detection device

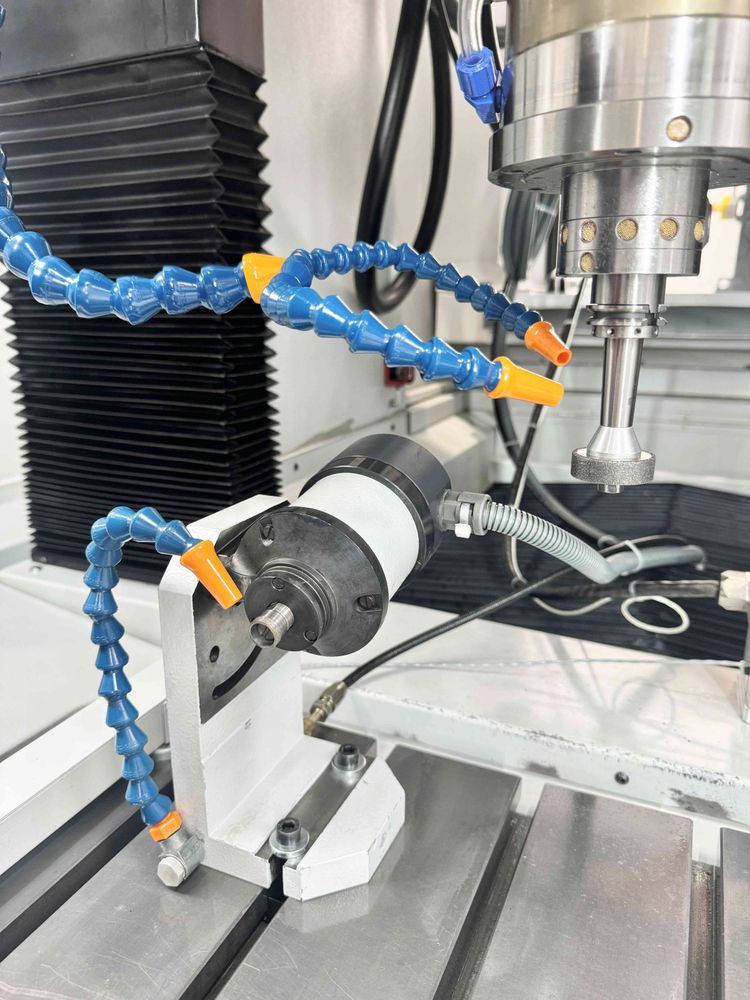

x1 CBN dressing unit with HF drive for automatic dressing of CBN grinding wheels (ceramic bond and synthetic resin)
x1 T16 grinding turbine - speed: 160,000 rpm - reference: 164225
x1 turbine support with filter for use with T10 and T16 turbines - reference: 166497

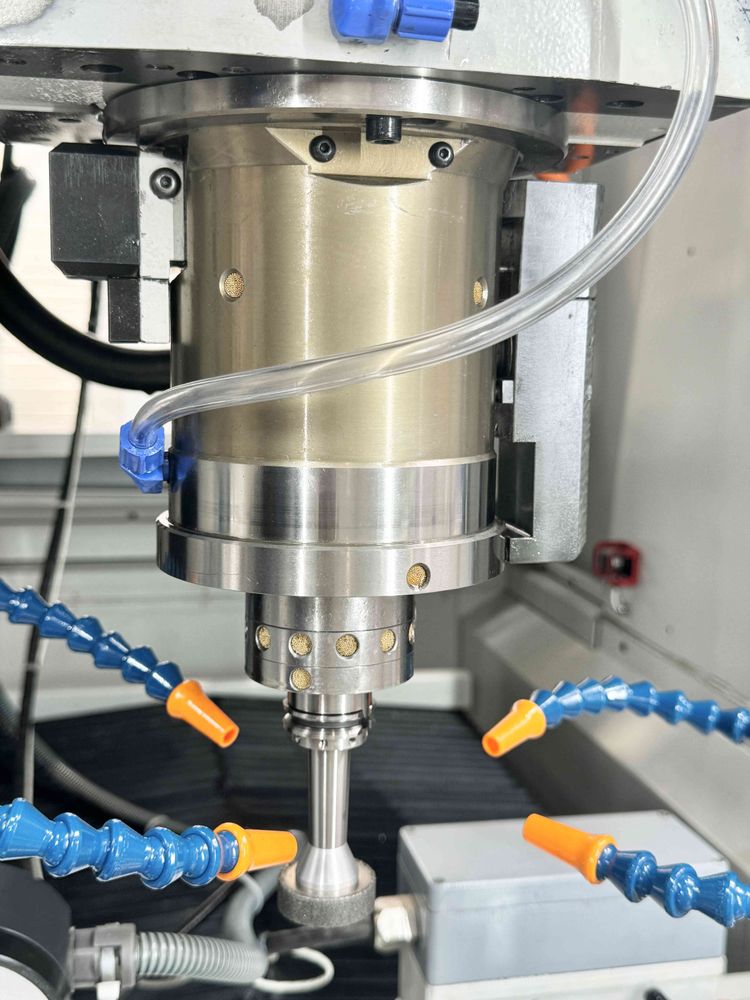

x1 60S-TC grinding motor, speed 9000 - 60000 [rpm], for SK20 collets - part number: 208450
x1 intermediate plate for aligning motors and urbines - reference: 192940
x1 centring watch holder for grinding motor rotor - reference: 191790

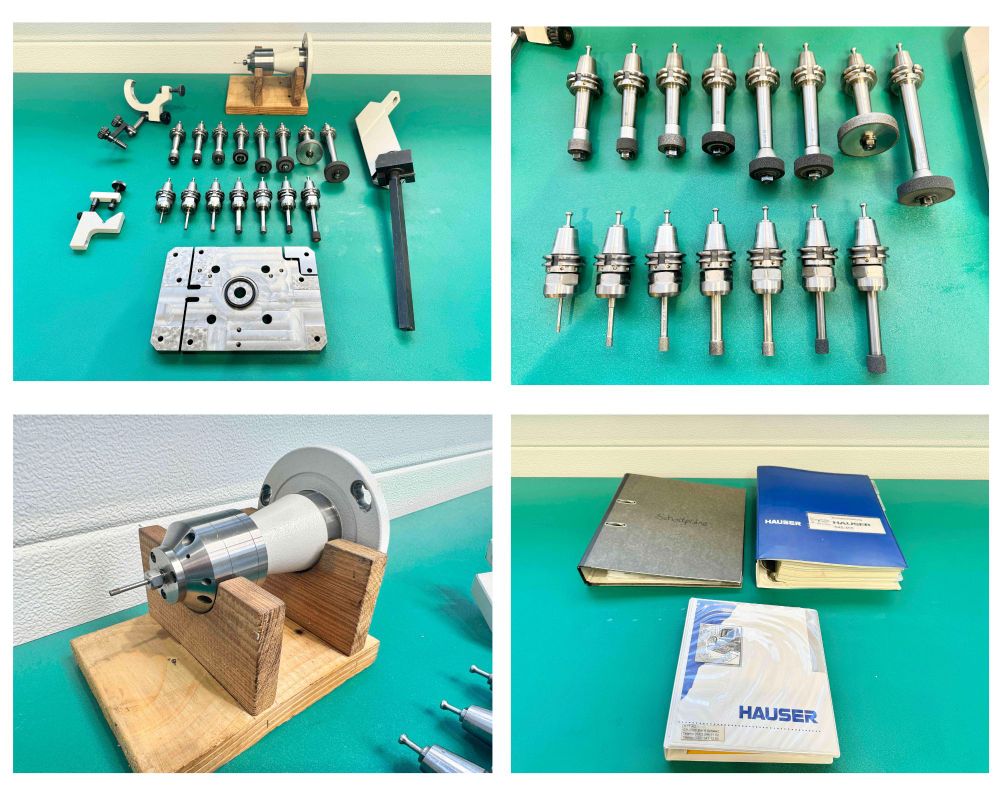

x15 wheel holder cleats
x1 cable for grinding motor
Various tools
Full documentation



Machine visible under power in our premises by appointment.

Price on request, loading on truck included.

Possibility of shipping Worldwide.
