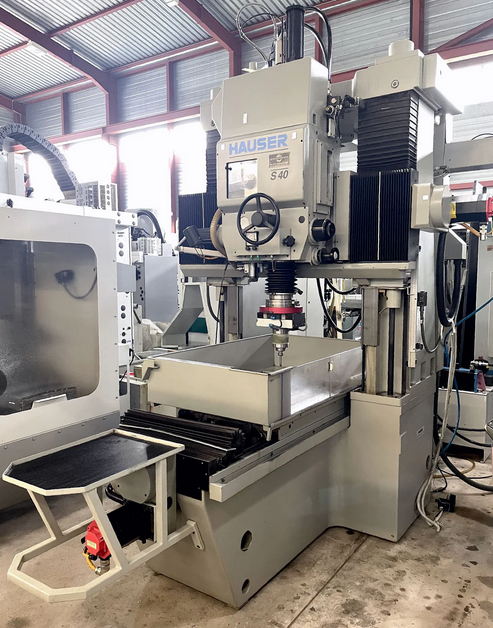

Hauser S 40

Control: FANUC 210 IS-M
Table length: 770 mm
Table width: 630 mm
Table load capacity: 500 kg
X-axis travel: 650 mm
Y-axis travel: 450 mm
Z-axis travel: 500 mm
C-axis speed: 5–250 t/min
Spindle stroke: 130 mm
Max grinding diameter: 230 mm
Max grinding diameter (with display plate): 360 mm
Spindle center to vertical slide distance: 600 mm
Passage between columns: 750 mm
Taper grinding angle: up to 16°
Z-axis stroke adjustment: 0–140 mm

Grinding spindle speed range: 4,500–80,000 t/min
Air turbine spindle speed: up to 160,000 t/min

Power supply: 3x 380 V / 50 Hz
Total power: 8 kW

Machine weight: approx. 4000 kg
Machine dimensions (LxWxH): 4000 x 3600 x 3200 mm
Features:
CNC jig grinder
High-precision grinding system
Planetary C-axis motion
Stepless spindle speed control
Designed for tight tolerance machining
Suitable for aerospace applications
Suitable for medical applications
Suitable for automotive applications
Suitable for watchmaking applications
Suitable for machine tool manufacturing
