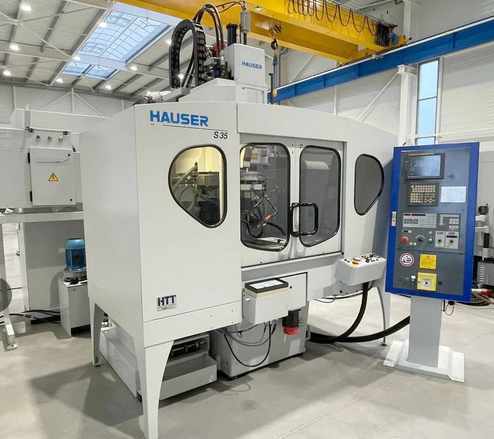

Hauser S 35-400
Ref :
2789680-3-MT
Condition :
Used
Manufacturer :
Hauser
Model :
S 35-400
Year(s) :
-
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
X-Axis Travel: 500 mm
Y-Axis Travel: 300 mm
Vertical Slide Travel: 450 mm
Spindle Nose Stroke: 340 mm
Max Grinding Diameter: 230 mm
Max Grinding Diameter (with display plate): 360 mm
Spindle-to-Table Distance: 485 mm
Table Length: 600 mm
Table Width: 380 mm
Vertical Spindle Travel: 1–110 mm (stepless)
Travel Speed: 1–12 m/min (stepless)
Planetary C Axis Speed: 5–250 t/min (stepless)
Spindle Taper Angle: up to 16°
Control: GE FANUC Series 16i-M CNC
Tool Changer: 12 tools (EROWA)
Coolant System
Paper Filtration System
Lamp
MSS Multi-Sensoric System
Oil Mist Extractor
CBN Redresser with HF Drive
Voltage: 3×380 V, 50 Hz
Total Power: 10 CV
Machine Weight: 4000 kg
Dimensions: 2700 × 1700 × 2850 mm
