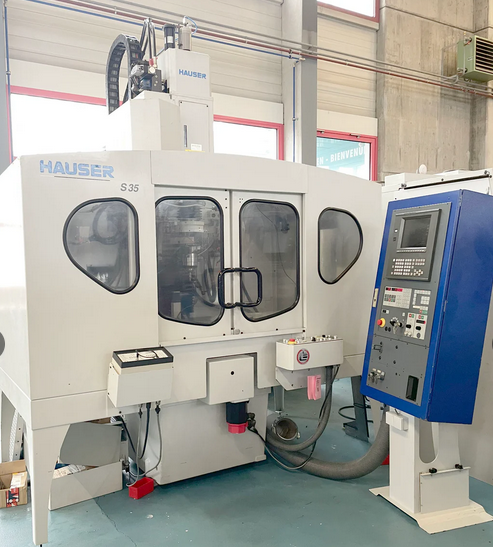

Hauser S 35-400

Longitudinal travel (X-axis) 500 mm
Transversal travel (y-axis) 300 mm
Travel of the vertical slide 450 mm
Planetary motion speeds: c axis stepless from 5 t/min up to 250 t/min
GE FANUC Series 16i-M
Coolant system
Paper filtration system
Grinding motor 70S-ATC
Oil mist extractor
Tool changer 8 tools Type EROWA
RS-232 Interface
Max. grinding diameter 230 mm (360 mm with display-plate)
Stroke of spindle-nose 340 mm
Spindle motor 7.5 kW
Passage from grinding motor to table 485 mm
Max. angle with taper grinding up to 16 °
Vertical travel of grinding spindle stepless from 1 mm up to 110 mm
Feeds X axis 0 - 12 m/min
Feeds Y axis 0 - 12 m/min
Feeds W axis 900 mm/min
Travel speeds stepless from 1 m/min up to 12 m/min
Table length 600 mm
Table width 380 mm
T-channel width 10 mm
Number of spline 6
Distance of the T-slots 50 mm
Table load max. 200 kg
1 column execution
Machine's weight about 4000 kg
Length 2700 mm
Width 1700 mm
Height 2850 mm
Voltage 3x 380 Volt 50 Hz
