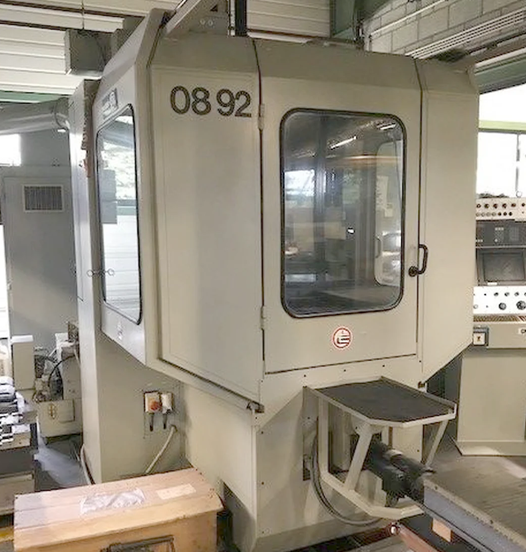

Hauser S 40 CNC
Ref :
2803922-3-CP
Condition :
Used
Manufacturer :
Hauser
Model :
S 40 CNC
Year(s) :
-
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
X-Axis Travel: 650 mm
Y-Axis Travel: 450 mm
W-Axis Travel: 500 mm
U-Axis Fine Feed: 6 mm
C-Axis Planetary Motion Speed: 5 - 250 RPM
Control: CNC 311
Intermediate Plate
Air Turbine
Stepless Adjustment
Grinding Diameter: 230 mm
Grinding Diameter with Display Plate: 360 mm
Spindle Nose Stroke: 125 mm
Maximum Taper Grinding Angle: 16°
Maximum Grinding Depth: 44 mm
Grinding Spindle Speed: 4,500 - 80,000 RPM
Air Turbine Spindle Speed: 160,000 RPM
Alternating Stroke Speed: 1 - 12,000 mm/min
Z-Axis Stroke Frequency: 4 Hz
Table Size: 770 x 630 mm
Maximum Table Load: 500 kg
Voltage: 380 V
Frequency: 50 Hz
Machine Weight: 5,600 kg
Machine Dimensions: 2650 x 2000 x 3150 mm
