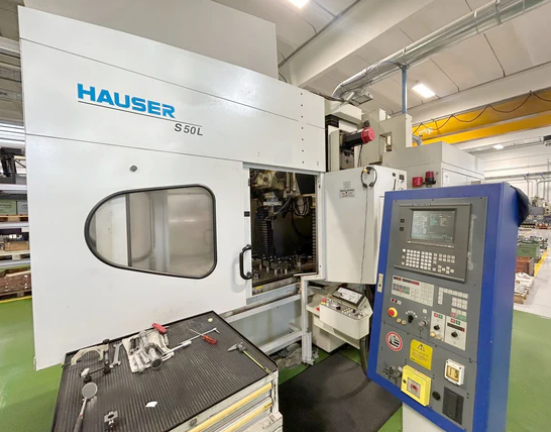

Hauser S 50 L CNC 400

Longitudinal Travel (X): 1200 mm
Transversal Travel (Y): 600 mm
Vertical Slide Travel (Z): 635 mm
C Axis Speed Range: 5–300 t/min
Control: GE FANUC Series 16-M
Max Grinding Diameter: 230 mm
Max Grinding Diameter with Plate: 360 mm
Max Angle with Taper Grinding: 16°
Possible Spindle Speed Range: 9000–80000 t/min
Air Turbine Speed: 160000 t/min
Voltage: 380 V
Total Power Required: 9 kVA
Machine Weight: ≈6300 kg
Machine Length: 3000 mm
Machine Width: 2500 mm
Machine Height: 2870 mm
Table Length: 1320 mm
Passage Grinding Motor to Table: 750 mm
Passage Between Columns: 950 mm

Paper filtration system
MSS Multi-Sensoric-System
Fire extinguishing system
Oil mist extractor
