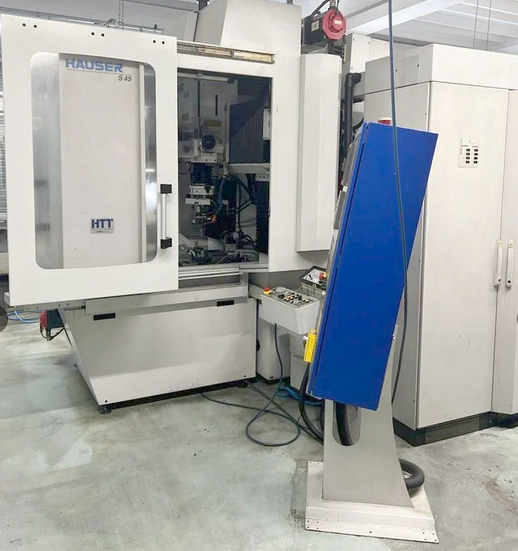

Hauser S 45-400

Longitudinal Travel (X-Axis): 700 mm
Transversal Travel (Y-Axis): 500 mm
Vertical Travel (W-Axis): 500 mm
Z-Axis Stroke Length: 130 mm
Z-Axis Stroke Frequency: 5 Hz
Z-Axis Stroke Speed: 1 - 14000 mm/min
X-Axis Feed: 0 - 1800 mm/min
Y-Axis Feed: 0 - 1800 mm/min
W-Axis Feed: 0 - 1150 mm/min
Radial Fine Feed (U-Axis): 6 mm
Control: FANUC
Table Length: 770 mm
Table Width: 630 mm
T-Channel Width: 14 mm
Maximum Table Load: 500 kg
Passage Between Columns: 750 mm
Passage from Grinding Motor to Table: 0 - 600 mm
Maximum Grinding Diameter: 230 mm
Maximum Grinding Diameter with Plate: 360 mm
Maximum Taper Grinding Angle: 16°
Spindle Speed Range: 4500 - 80000 rpm
Voltage: 400 V
Tool Changer Positions: 12
Tool Changer Type: EROWA
Centering Device with Dial Indicator
MSS Multi-Sensoric-System
Oil Mist Extractor
CBN Redresser with HF Drive
