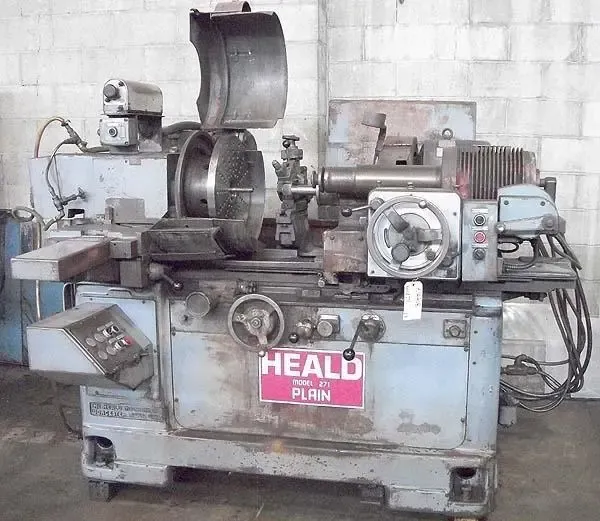

Heald 271

Max Swing Over Table: 22"
Max Swing Inside Guards: 18"
Max Grinding Stroke: 8"
Max Grinding Hole Diameter: 9.75"
Min Grinding Hole Diameter: 0.125"
X-Axis Feed Rate: 0–20 FPM
Rapid Traverse: 35 ft/min
Workhead Swivel Range: 60°
Workhead Spindle Flange Diameter: 9.625"
Max Workhead Speed: 400 RPM
Min Workhead Speed: 100 RPM
Dresser: Yes
Face Plate: 18"
ID Spindle: Heald Red Head
Control Type: Manual / Hydraulic System
ID and Face Grinding Capability
Splash Guards
Coolant System
Hydraulic Power Cross Sliding Headstock
Swivel Work Head
Workhead: Manually Operated Single Point Wheel Dresser

Machine Dimensions: 91" x 74" x 74"
Machine Weight: 8,000 lbs
