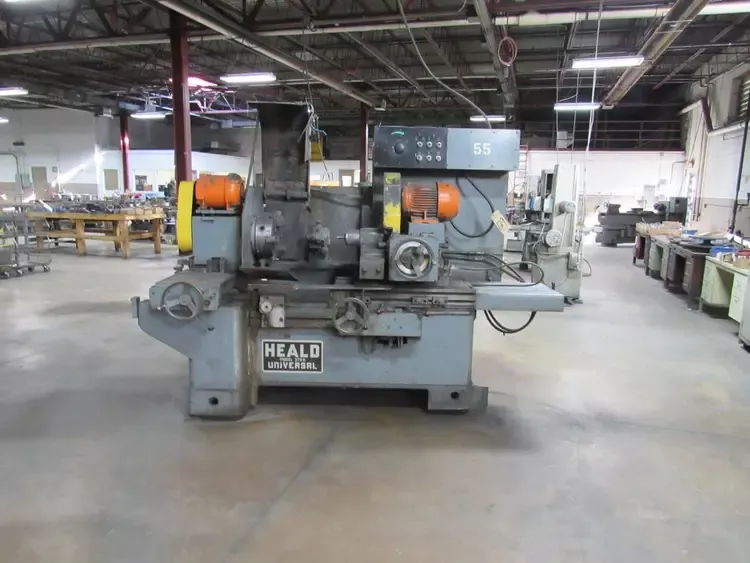

Heald 273A

Max swing over table: 29 in
Size capacity: 12 in
Grinding stroke: 16 in
Maximum table travel: 20 in
Workhead swivel: 90°
Workhead power: 1.5 HP
Wheel motor power: 5 HP
Workhead speed: 1200 rpm
Variable speed workhead
Rectangular swing inside guard: 12 in
Workhead cross slide travel: 17.5 in
Wheelhead cross slide travel: 1.5 in
Table speed for grinding: up to 18 FPM
Rapid table traverse: 18 FPM
Minimum stroke: 0.125 in
Workhead spindle flange diameter: 9.625 in
Coolant pump and tank
Facing attachment
Dresser included
Oil tank capacity: 11 gallons
Machine length: 73.75 in
Machine width: 37.875 in
Machine weight: 10,000 lb
