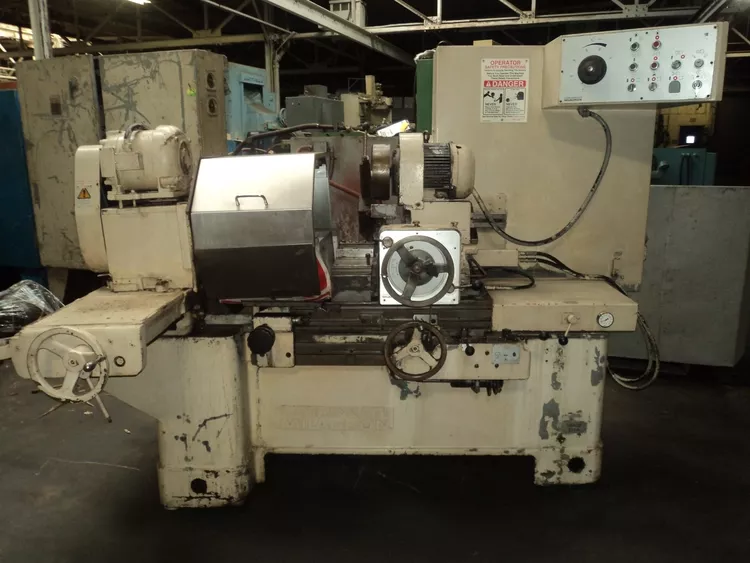

Heald 273A

Max swing over table: 24 in
Swing inside standard chuck guard: 20 in
Size capacity: 24 in
Grinding stroke: 16 in
Maximum table travel: 20 in
Workhead cross slide travel: 17.5 in
Wheelhead cross slide travel: 1.5 in
Workhead swivel: 90°
Table speed for grinding: up to 18 FPM
Rapid table traverse: 18 FPM
Minimum stroke: 0.125 in
Workhead speeds: Variable
Workhead speed: 1200 rpm
Workhead motor power: 1.5 HP
Wheel motor power: 5 HP
Workhead spindle flange diameter: 9.625 in
Machine length: 73.75 in
Machine width: 37.875 in
Machine weight: 10,000 lb

Adjustable workhead
Cross sliding workhead
Variable speed workhead
Plunge feed
Extended base
Standard flange type workhead
Face stop
Attached electrical
