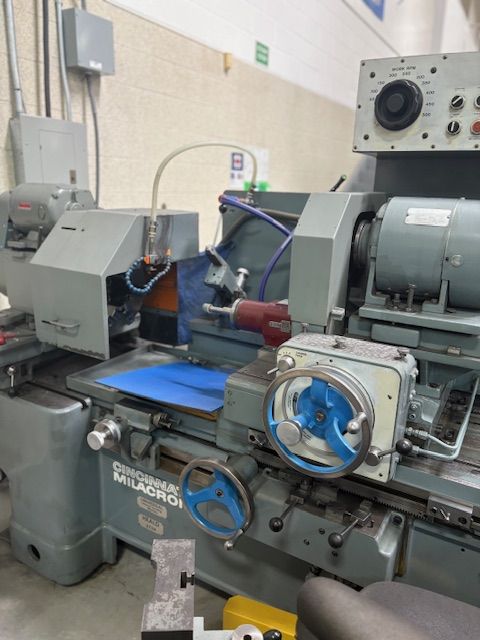

Cincinnati Milacron, Heald 273A

Heald Cincinnati Milacron 273A
Year 1983

Swing over table 24.5"
Angular adjustment of workhead 90 degrees
Workhead cross slide travel 11.5"
Table travel max 20"
Wheelhead cross slide travel 1.5"
Table speed range 0 to 18 FPM
Rapid traverse of table 18 FPM
Workhead speeds 0 to 500 RPM, variable
Red head spindle 14,000 RPM
6 jaw chuck
Table mounted dresser
12" extended base
Workhead sine bar
4 barrel stop / facing attachment
Hydrostatic ways
Forward & reversing switch for workhead
Electrical motors & controls voltage 208/3/60
Dimensions FB x RL 62" x 92"
Height 77"
Estimated weight 7,000 lbs
Coolant tank & pump
