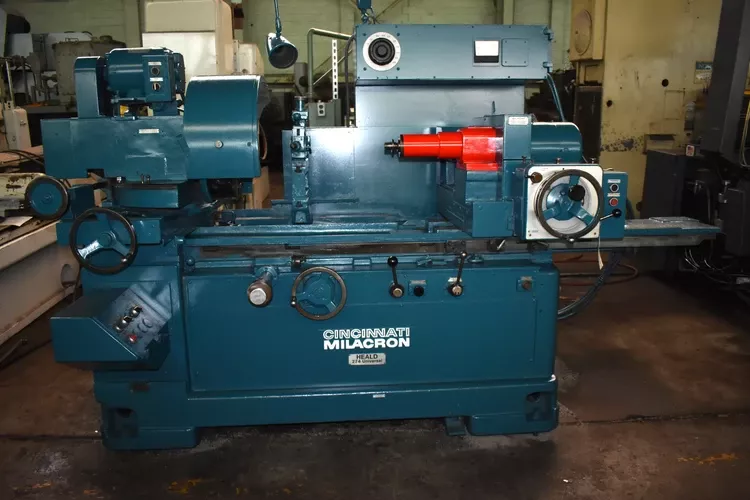

Cincinnati Milacron, Heald 274

swing 30"
max grinding bore 21.75"
longitudinal travel 30.25"
workhead cross-slide travel front 6"
workhead cross-slide travel rear 15"
workhead swivel 90°
grinding angle max 9°
workhead spindle speeds 40 to 350 rpm
grinding table speeds 0 to 15 fpm
center of chuck spindle from floor 48"
workhead spindle flange diameter 9.625"
power rapid table traverse 35 fpm
floor space 123" x 101"
machine weight 8850 lbs
long base
Heald "Red-Head" grinding spindle
wheel dresser
18" 4-jaw chuck with jaws
