Heavy - Duty Turning & Deep Hole Boring Machines [Metalworking]

Type : Auction
Ref : 2511128-3
Industry : Machine Tools
Location : South Korea
Starts at : Sep, 22
Ends at : Oct, 22

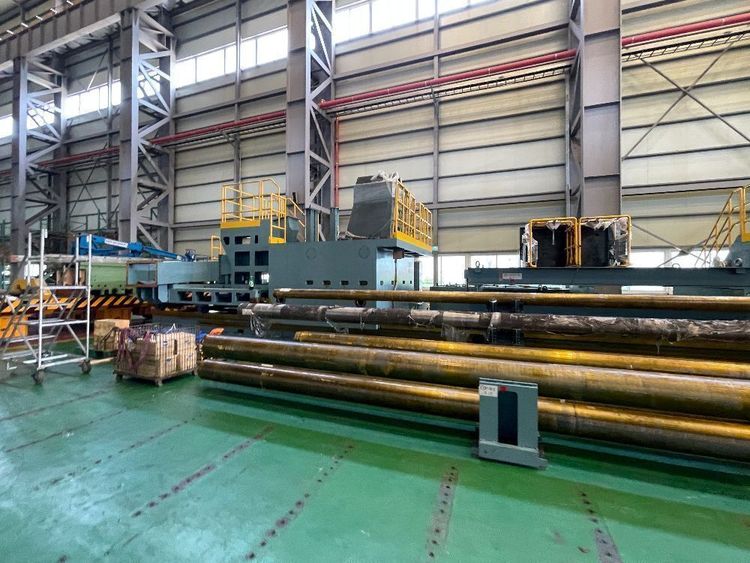

Heavy-Duty Machining (Turning, Deep Hole Boring, and Grinding) of Turbine Rotors, Shafts, Crankshafts, etc. from Dong Cheon Co. Ltd in
South Korea.

For Sale by Private Treaty

Featured Items:

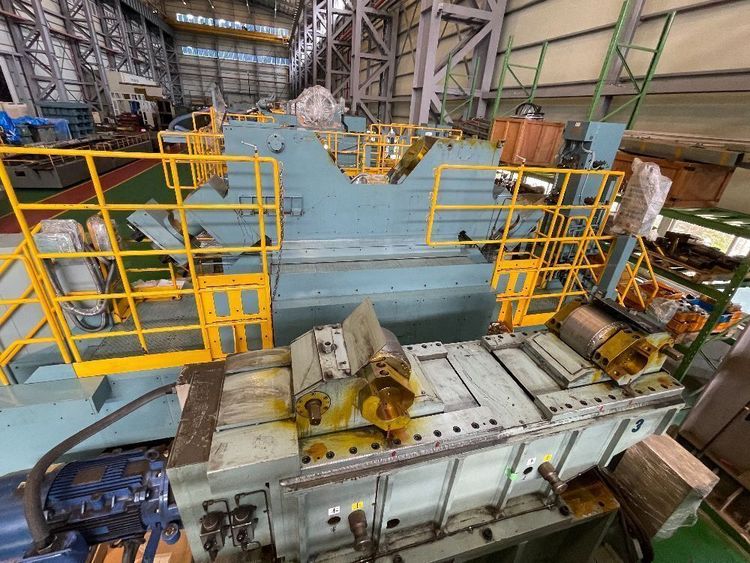

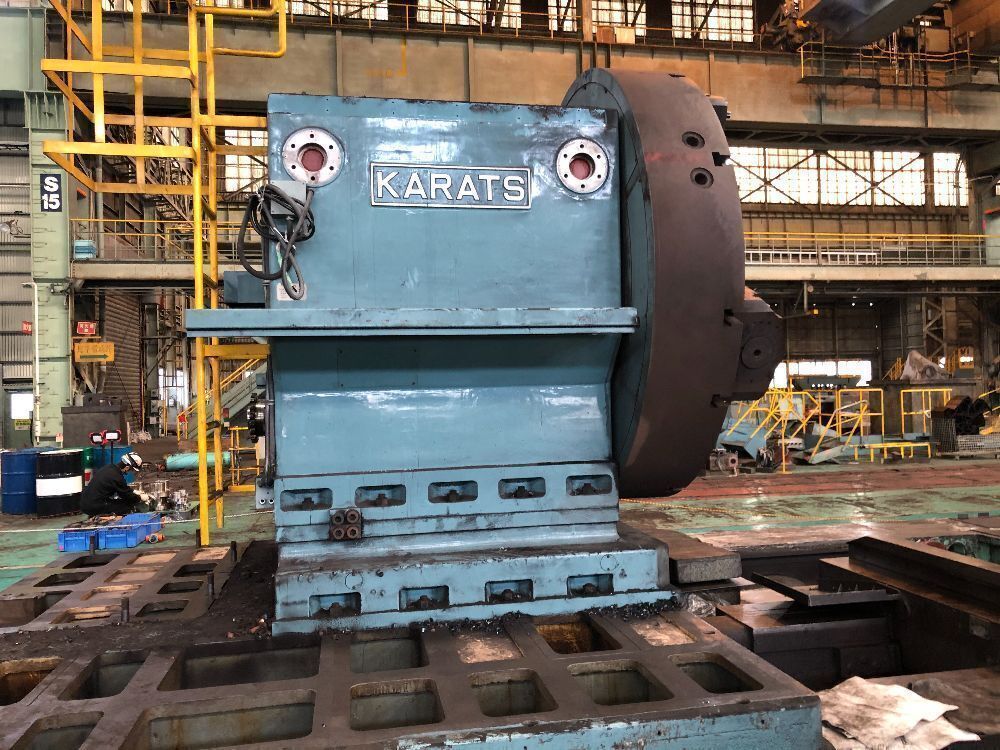

1) Lot 1 KARATS CNC Deep Hole Boring Lathe, Model L-58BN (2016); BTA System; swing 5.800 mm; max boring diameter 650 mm x 24 Meter, max weight 380 Ton, motor 500kW, weight 350T; FANUC 31i-B

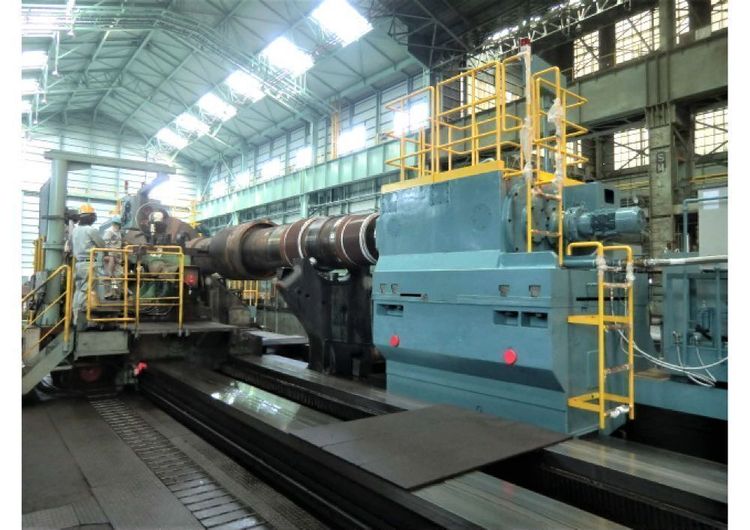

2) Lot 2 KARATS CNC Lathe, Model D1750-20 (2012); swing over bed/carriage 3.560/3.060 mm x 20 M between centres;

max weight 150 Ton; motor 330 kW; Fanuc 21i-TB.

3) Lot 3 KARATS CNC Lathe, Model L-32N (2007); swing over bed 3.200/ 2.800 mm x 15 M between centres; max weight 200 Ton; motor 330 kW; weight 270 ton; Fanuc 18i-TB

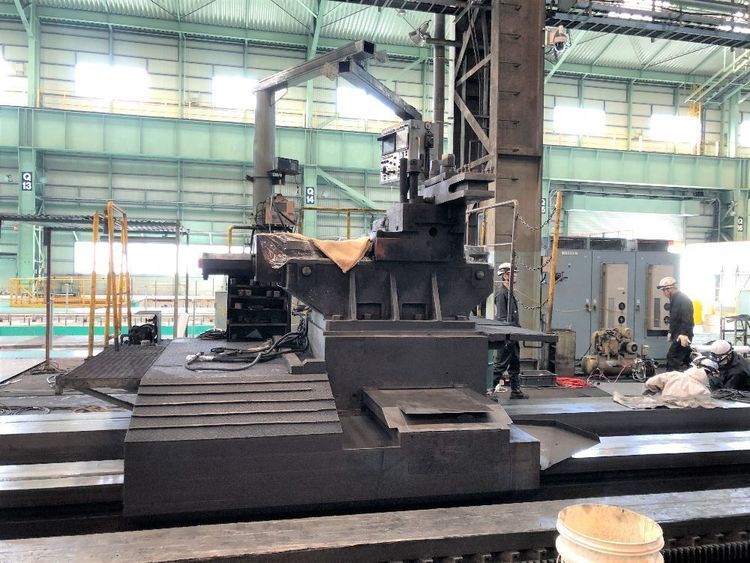

4) Lot 4 HOMMA CNC Vert. Turning/Milling Centre (VTL), Model HTM 7.0/9.0 (1991); table 7.000 mm; swing 9.000 mm; workpiece height 4.350 mm; weight of workpiece 250 Ton; Ram stroke 3.000 mm; Motor 150 kW; Milling Spindle motor 37/45 kW; Fanuc 15 M.

5) Lot 5 KARATS CNC Crankshaft Grinder, Model CG (2009); max grinding length 6.300 mm; max swing 800 mm; with many crankshaft steadies.
