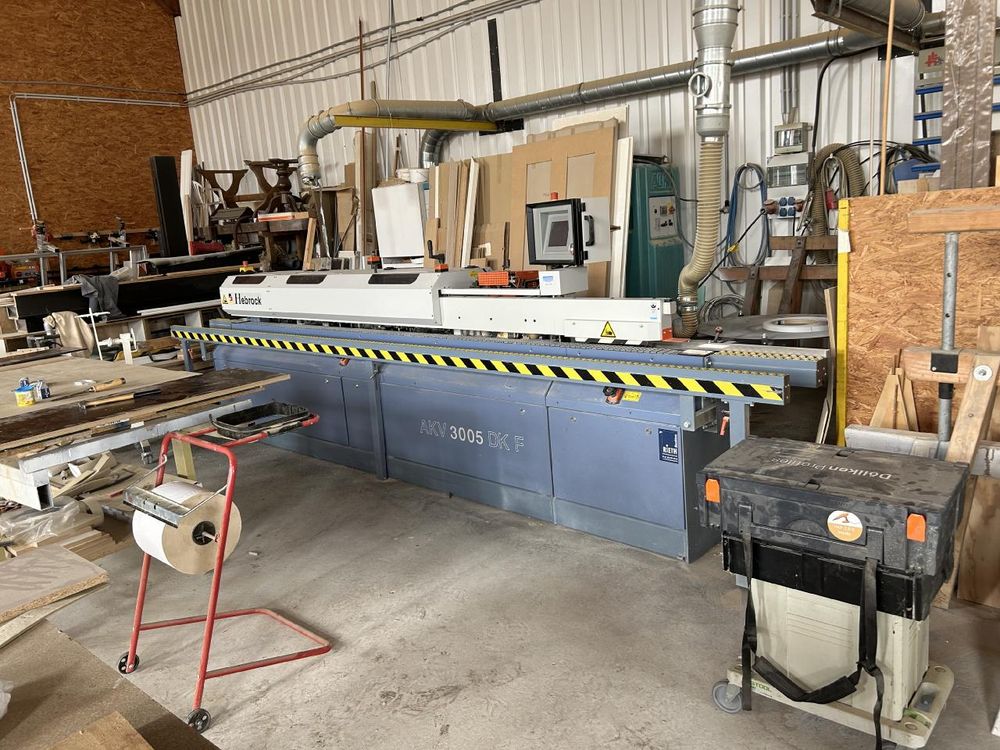

Hebrock AKV 3005 DK-F

Used Machine
Right-Hand Edge Banding Machine
Equipment and Technical Specifications:
Max. edge thickness 3 mm
Prepared for interchangeable tray
Min./max. workpiece thickness 8-60 mm
Feed speed approx. 10 m/min
Ready for operation approx. 5 min.
Min. workpiece length 190 mm
Min. workpiece width 80 mm
Jointing trimming unit with 2 trimming heads
With PLC control (including touchscreen)
Glue pot with contact roller
Pressure zone
Cross-cut shears
Cross-cut saw
Combination trimming unit for flush/bevel/radius, pneumatically adjustable
Corner rounding unit
Surface scraper, short version
Dimensions approx. 4700 x 1200 x 1530 mm
Weight approx. 1150 kg
