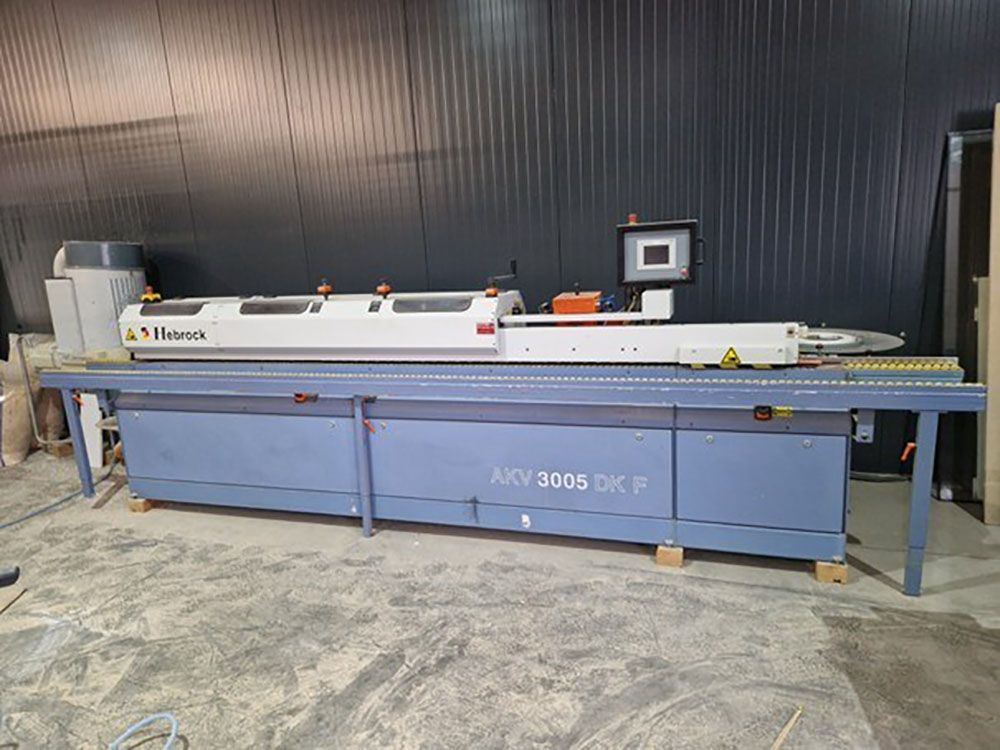

Hebrock AKV 3005 DK-F

Edgebanding Machine
Features and technical data:
Max. edge thickness 3 mm
With preparation for interchangeable glue pots
Min./max. workpiece thickness 8-60 mm
Feed speed approx. 10 m/min
Ready for operation approx. 5 min.
Min. workpiece length 190 mm
Min. workpiece width 80 mm
Joint milling unit with 2 milling heads
With PLC control
Glue pot with contact roller
Pressure zone
Trim shear
Trim saw
Combination milling unit flush/chamfer/radius, pneumatically adjustable
2 milling stations
Corner copying unit
Surface scraper, short version
Radius scraper
Spraying device
Dimensions approx. 4700 x 1200 x 1530 mm
Weight approx. 1150 kg
