Hedelius C60 S - 1200 3 Axis
Ref :
2727070-3-GO
Condition :
Used
Manufacturer :
Hedelius
Model :
C60 S - 1200
Nb Of Axis :
3 Axis
Year(s) :
2005
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)

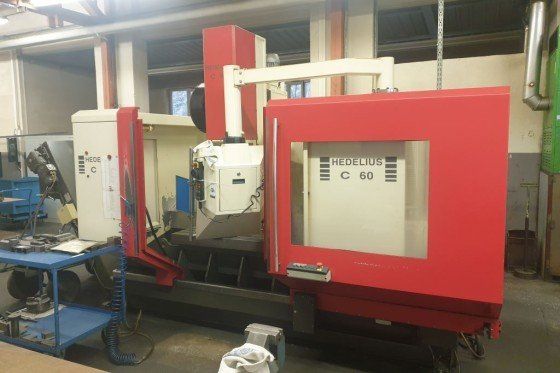

Hedelius C60 S - 1200
2005
HeidenHain iTNC530 control
Heidenhain HR 410 handwheel
chip conveyor left side
coolant system
ATC / revolver 30 positions
X travel 1200 mm
Y travel 620 mm
Z travel 520 mm
table length 1550 mm
table width 600 mm
table load 1500 kg
feed rate X axis 15000 mm/min
feed rate Y axis 15000 mm/min
feed rate Z axis 15000 mm/min
spindle taper 40 ISO/Bt/Mk
spindle power 18 kW
max spindle speed 8000 rpm
number of controlled axis 3
length 3500 mm
width 3000 mm
height 2900 mm
weight 9000 kg
