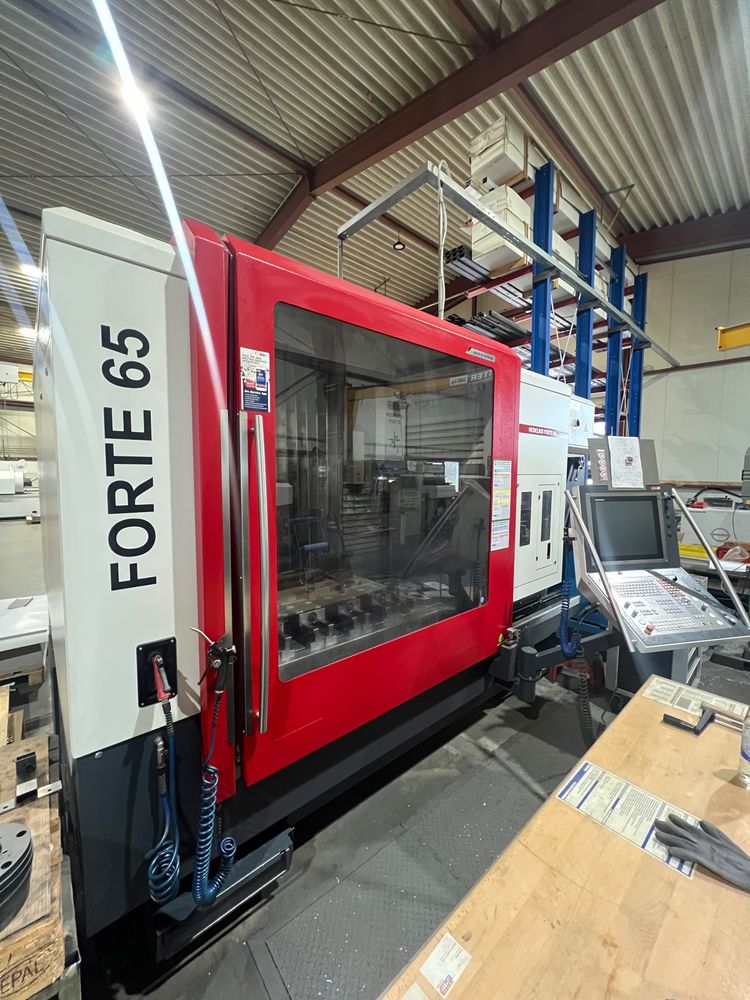

Hedelius Forte 65 Single 1320/40/64 CNC Milling Machine 3 Axis

Hedelius Forte 65 Single 1320/40/64 CNC Milling Machine

- Working Area:
- Travels (X/Y/Z): 1320 x 650 x 600 mm

- Main Spindle:
- Power: 22 / 29 / 50 / 35 / 30 kW
- Torque: 117 / 183 / 217 / 136 / 70 Nm
- Speed ​​Range: 14,000 / 15,000 / 18,000 / 22,000 rpm
- Tool Holder: SK 40, BT 40, HSK A63
- Pull-in force: 8 / 12 / 22 kN

- Cutting capacity:
- Milling: 400, 550, 600, 450, 250 cm³/min
- Drilling: Ø 40 / 45 / 50 / 30 mm
- Tapping: M 24 / M 27 / M 20

- Work table:
- Clamping area: 1500 x 650 mm
- Maximum load on fixed table: 1200/2000 kg
- T-slots: 18
- Number of T-slots: 5
- T-slot spacing: 125 mm
- Guide slot: 18 H12

- Feed rates:
- Continuously variable X/Y/Z: 40/40/40 m/min
- 3D-FORMINGSTAR package: Optional
- Feed force: 11,000 N

- Tool magazine:
- Capacity: 65 / 135 / 180 / 245 / 329
- Tool diameter: 75/100/125 mm
- Tool length: 330 mm
- Chip-to-chip time: approx. 9.3 seconds

- Accuracy:
- Positioning accuracy: A=8 μm/1000 mm

- Weight:
- Machine weight: approx. 8,300 kg
