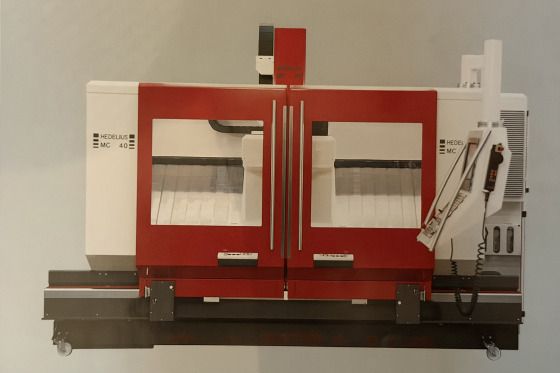

Hedelius MC40/1800 3 Axis
Ref :
2791512-3-GO
Condition :
Used
Manufacturer :
Hedelius
Model :
MC40/1800
Nb Of Axis :
3 Axis
Year(s) :
2005
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
X Axis Travel: 1800 mm
Y Axis Travel: 420 mm
Z Axis Travel: 480 mm
Heidenhain iTNC530 Control
Spindle Speed: 8000 rpm
Spindle Power: 16 kW
Spindle Taper: ISO 40
Feed Rate X Axis: 45000 mm/min
Feed Rate Y Axis: 45000 mm/min
Feed Rate Z Axis: 45000 mm/min
ATC Capacity: 20 Tool
Coolant Through Spindle: Yes
Chip Conveyor: Yes
Coolant System: Yes
Table Length: 2000 mm
Table Width: 420 mm
Number of Controlled Axes: 3
Machine Weight: 5000 kg
Machine Dimensions (L): 4300 mm
Machine Dimensions (W): 3100 mm
Machine Dimensions (H): 3100 mm
