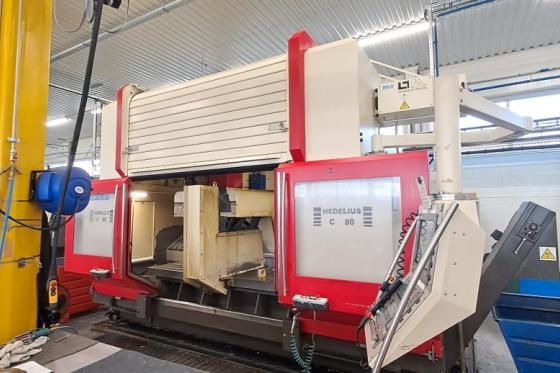

Hedelius C80/2300/8 3 Axis

X-axis travel 2340 mm
Y-axis travel 800 mm
Z-axis travel 600 mm
Number of controlled axes 3
Control Heidenhain iTNC 530
Full enclosure with vacuum extraction
Roller shutter door for crane loading
Pick-up station for 3 angled milling head
Pendant screen for split manufacturing
Handwheel HR410 Heidenhain
Coolant system
Coolant tank filtration 350 L
Double oil mist extraction
Chip conveyor
Table length 2900 mm
Table width 750 mm
Table load 2800 kg
Spindle taper ISO 40
Spindle motor power 27 kW
Spindle speed 8000 RPM
Feed rate X-axis 40000 mm/min
Feed rate Y-axis 40000 mm/min
Feed rate Z-axis 40000 mm/min
Automatic tool changer 40 positions
Coolant through spindle 20 bar
Machine length 6200 mm
Machine width 3500 mm
Machine height 3600 mm
Machine weight 13000 kg
