Hedelius Tiltenta T6-2300 5 Axis

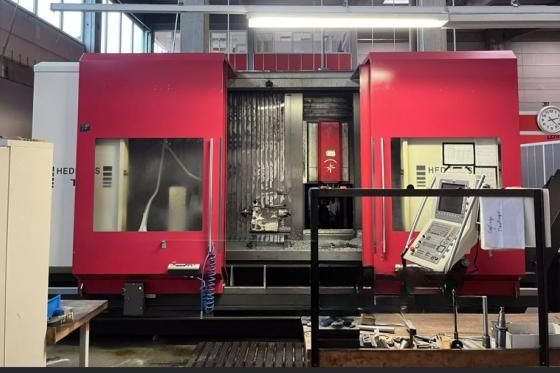

HEDELIUS Tiltenta T6-2300
2005

Optional NC rotary table
Working area 750 x 550 mm
Table load 800 kg
Table torque 1600 Nm
Table rotation speed 22 rpm
2 × 850 mm pendulum machining
Heidenhain HR 410 handwheel
Heidenhain iTNC530 control
X-axis travel: 2300 mm
Y-axis travel: 630 mm
Z-axis travel: 810 mm
A-axis travel: -92° to +92°
B-axis travel: 360°
Table length: 2900 mm
Table width: 630 mm
Maximum table load: 2000 kg
X-axis feed rate: 60000 mm/min
Y-axis feed rate: 60000 mm/min
Z-axis feed rate: 60000 mm/min
Spindle taper: ISO 40 / BT / MK
Spindle power: 26.5 kW
Spindle speed: 12000 rpm
Tool magazine capacity: 40 tools
Coolant through spindle: 20 bar
Number of controlled axes: 5
Chip conveyor: Yes
Coolant system: Yes
Machine length: 7500 mm
Machine width: 3250 mm
Machine height: 3250 mm
Machine weight: 16800 kg
