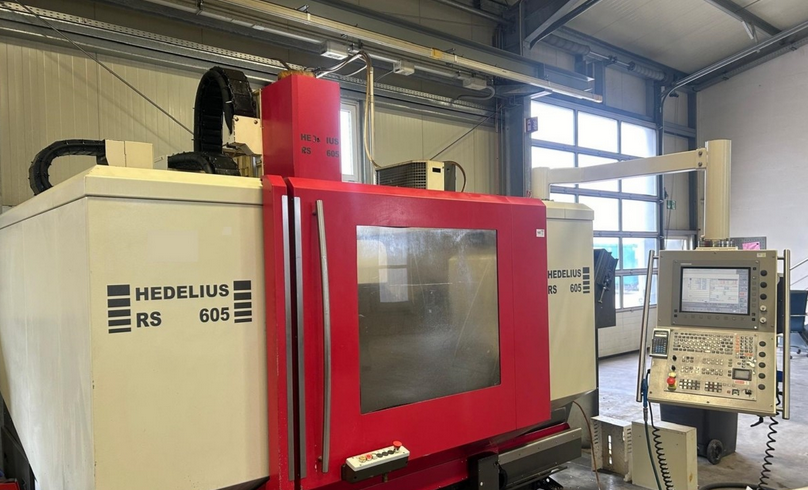

Hedelius RS605 K 5 Axis
Ref :
2733663-3-MT
Condition :
Used
Manufacturer :
Hedelius
Model :
RS605 K
Nb Of Axis :
5 Axis
Year(s) :
2011
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Travel X axis 1200mm
Travel Y axis 650mm
Travel Z axis 520mm
A axis +90° / -110°
C axis 360°
Control CNC Heidenhain iTNC 530
Swivel rotary table right
Fixed built-in table left
Tool changer 30 positions
Electronic handwheel
Coolant through spindle (20 bar)
Chip conveyor
Spindle taper SK40
Spindle speed 30–8000 RPM
Spindle power 22kW
Swivel travel range in X 500mm
Fixed table travel range in X 570mm
Swivel rotary table dimensions 520mm × 420mm
Interfering edge diameter 610mm
Fixed table dimensions 700mm × 600mm
Machine dimensions 3600mm × 2650mm × 2800mm
Machine weight 8500kg
