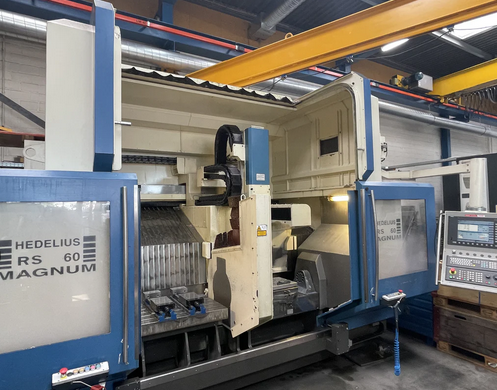

Hedelius RS 60 MAGNUM-2000 5 Axis

Axis Travel X: 2000 (600) mm
Axis Travel Y: 620 mm
Axis Travel Z: 520 mm
Rapid Traverse: 45 m/min
Feed Rate: 0 – 45,000 mm/min
A Axis Swivel: +15° / -95°

Control: Siemens Sinumerik
56 Tool Magazine
Coolant System 1250 L
High Pressure Coolant 80 bar
Renishaw Probe
Chip Conveyor
Oil Mist Extractor
Air Blast Through Spindle
Paper Filtration System
Electronic Handwheel
Full Enclosure
Splash Guard Cabin
Tool Holders
Switch Cabinet Air Conditioner

Table Size: 1200 x 600 mm
Table Diameter: 680 mm
Max Table Load: 300 kg

Spindle Speed: 50 – 12,000 rpm
Spindle Torque: 121 Nm
Spindle Taper: SK 40

Max Tool Diameter: 80 mm
Max Tool Length: 330 mm
Max Tool Weight: 8 kg
Tool Change Time: 3 sec

Total Power: 25 kVA

Machine Dimensions: 5400 x 4300 x 3000 mm
Machine Weight: 11,000 kg
