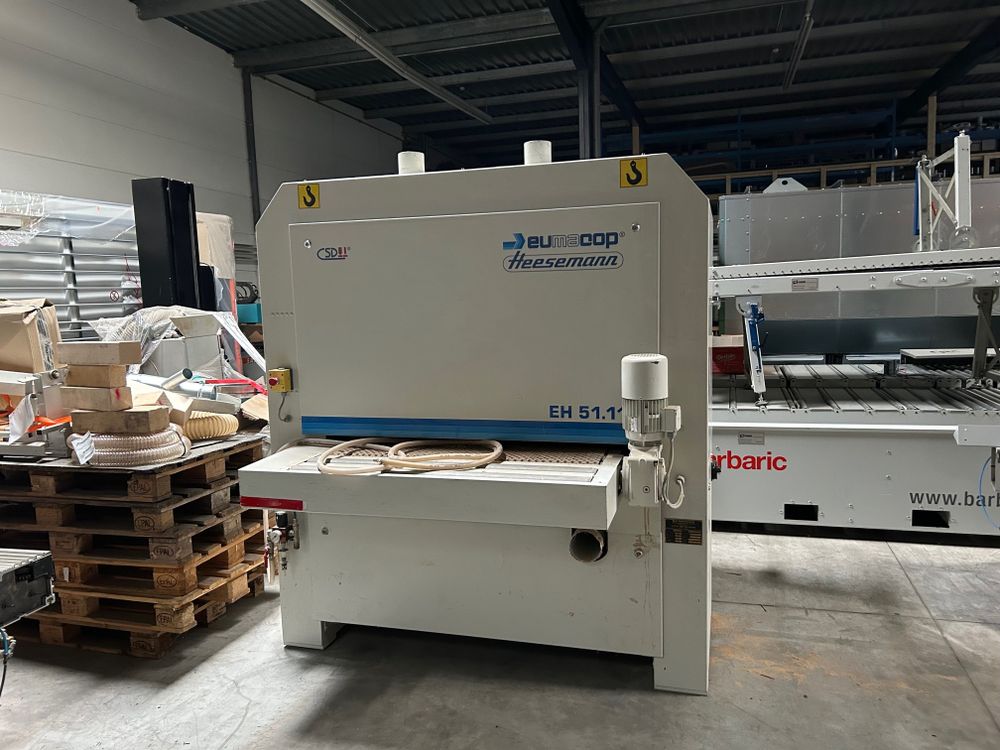

Heesemann EH 51.11

Used machine
1 automatic belt sander with combination unit with electronically controlled articulated pressure bar for sanding soft and hard veneers
calibrating and fine sanding of solid wood
calibrating workpiece carrier boards
sanding of defective veneers and lacquers
intermediate sanding of PU, water-based, UV, nitrocellulose, and polyester lacquers
sanding of barrier films with graphic control terminal
NC-controlled thickness adjustment from 3-150 mm
Activation of the calibration roller via terminal with patented CSD articulated pressure bar for compensating workpiece tolerances up to 2 mm

Sanding width 1100 mm
Sanding belt length 2150 mm
Sanding belt speed frequency-controlled approx. 2-18 m/sec
Sanding unit drive 15 kW
Feed speed 5/10 m/min
Compressed air 6 bar
Compressed air requirement 15 l/min
With belt discharge 490 l/min
Extraction port 180 mm
Air requirement grinding unit 1800 m³/h
Required air velocity 20 m/s
Total power consumption approx. 17 kW
Weight approx. 2000 kg
Dimensions WxDxH 1840x1670x2200 mm
Machine will be equipped with a new pre-lift belt
Availability: short-term
