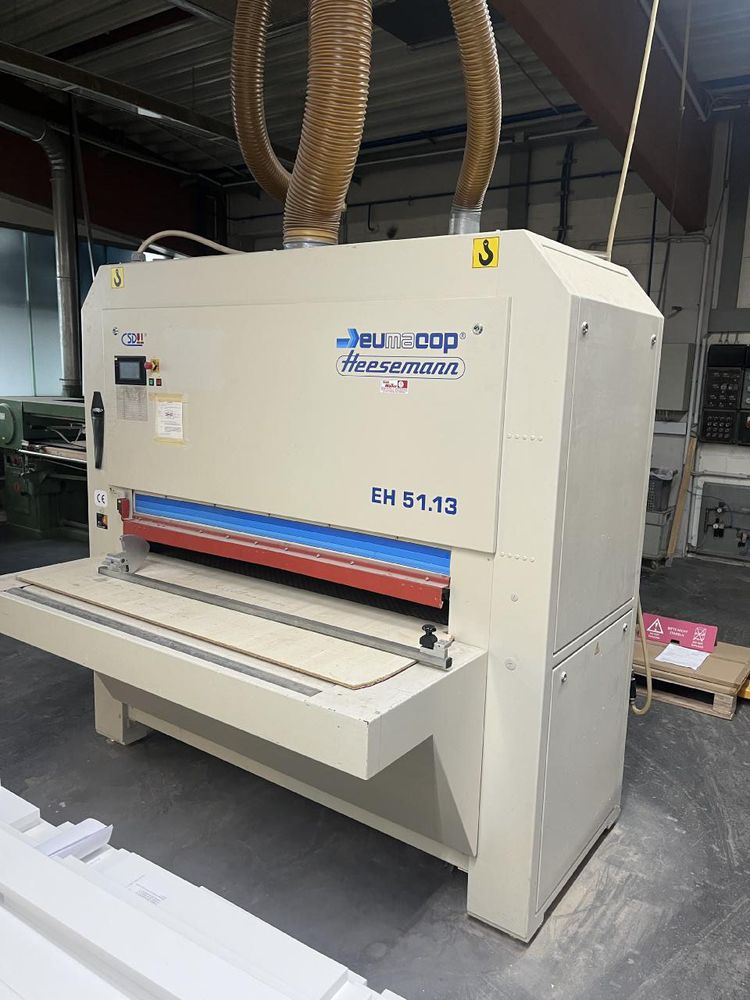

Heesemann EH 51.13

Wide belt sanders
Used machine
1 automatic belt sander with combination unit with electronically controlled articulated pressure bar for sanding soft and hard veneers
calibrating and fine sanding of solid wood
calibrating workpiece carrier boards
sanding of defective veneers and lacquers
intermediate sanding of PU, water-based, UV, nitrocellulose, and polyester lacquers
sanding of barrier films with graphic control terminal
NC-controlled thickness adjustment from 3-150 mm
Activation of the calibration roller via terminal with patented CSD articulated pressure bar for compensating workpiece tolerances up to 2 mm

Sanding width 1350 mm
Sanding belt length 2150 mm
Sanding belt speed frequency-controlled approx. 2-18 m/sec
Sanding unit drive 15 kW
Feed speed 5/10 m/min
Compressed air 6 bar
Compressed air requirement 15 NL/min
With belt discharge 490 l/min
Extraction port 180 mm
Air requirement grinding unit 1800 m³/h
Required air velocity 20 m/sec
Total power consumption approx. 17 kW
Weight approx. 2500 kg
Dimensions WxDxH 2090x1670x2020 mm
