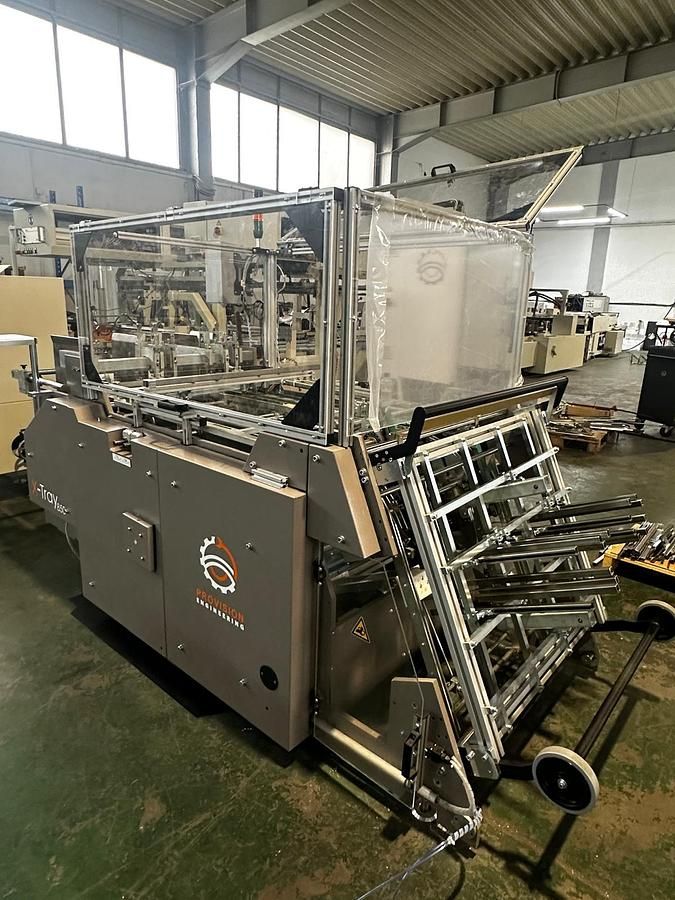

Heiber & Schroeder X-TRAY CE 850-2

Condition Used
Cardboard size From 200 to 600 g/m2
Corrugated cardboard thickness Up to 1.5 mm

Additional details:
Electronic spray glue dispenser
Bonding at 4 and 8 points (not included – optional)
Wall inclination from 5° to 40°

The new high-speed tray former concept with servo-assisted technology opens a new high-level solution for the production of food packaging in trays.
The belt-fed feeder and the forming station are completely servo-assisted and allow very quick and simple setup.
The machine base originally is a Heiber&Schroeder model CE 850-2
Machine with Omron electronics for maximum flexibility and interconnection
2 Inovance servo drives of 7 kW and 3 kW for feeding/conveying and forming
Thanks to the servo motors, the machine can operate from 1 m/min to 100 m/min.
Easy and fast setup thanks to the minimum speed of 1 m/min.
Belt-fed feeder with timed action for precise insertion of the cut pieces
Quick-change forming unit system with extra tower
