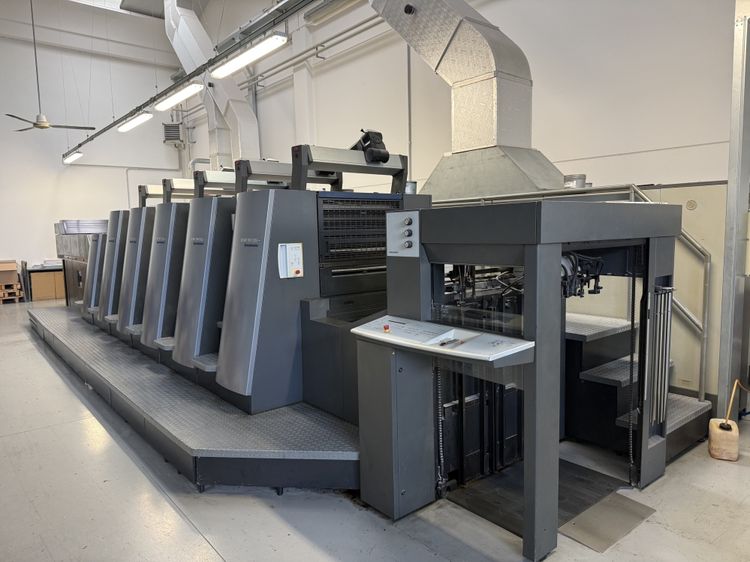

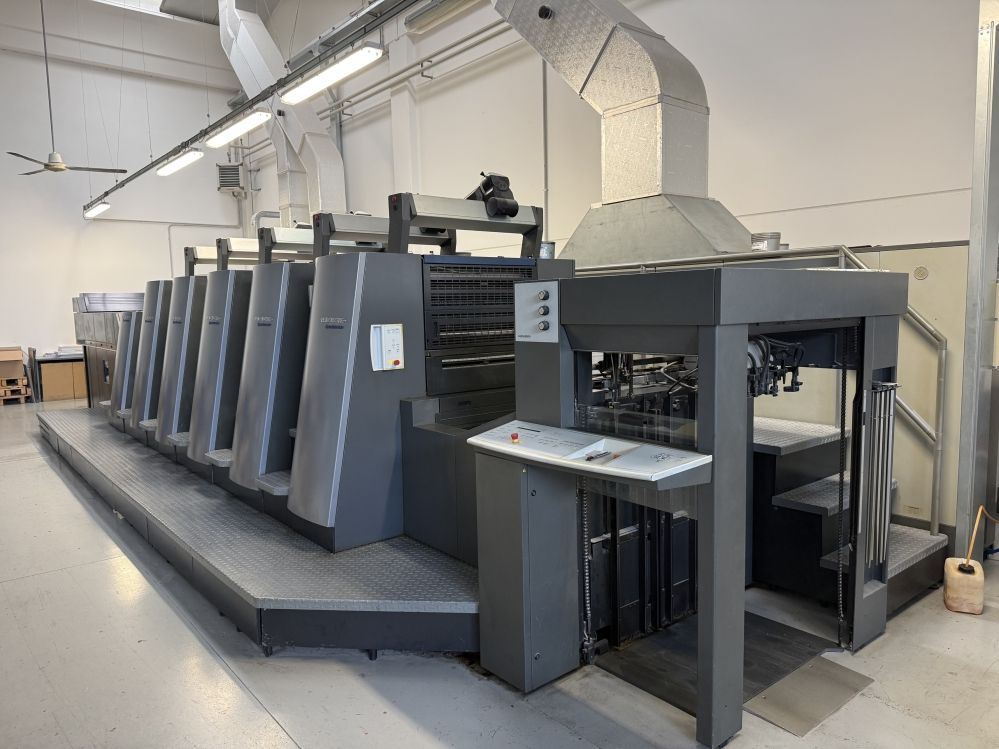

Heidelberg CD74-5LX-C 530 x 740 mm

158 mill. impressions
Sheet-fed offset press - Printing units: 5 + lack unit with TRESU camera racla system with 1 anilox rollers
Straight machine
High pile delivery
Technical features:
Speed 15.000 copie/h
Paper size max 530 x 740 mm
Paper size min 210 x 350 mm
Thickness 0,03-0,8 mm
Print size 510 x 740 mm
Plate size 605 x 745 mm Thickness 0,30 mm
Blancket size 772 x 700 mm Thickness 1,90 mm
Dimensions :
L. 11,5 mt.
P. 3,5 mt.
H.1,95 mt.
Power requirement Kw 70 approx (without dryer)
Weight 35.000 Kg. circa

Accessories included:
- Stream feeder with vacuum belts
- Preset (autom. paper size and thickness setting)
- Electronic double sheet detection
- Electromechanic double sheet detection
- Electronic side lay control, fotoelectronic and akustic
- Anti-static on feeder and delivery
- Alcolor continuous dampening system with Technotrans's alcohol metering; cooling and re-circulation unit system
- CP2000 Center with touch screen control and diagnosis; self diagnostic; Remote inking; dampening; axial, circumferential
and diagonal register control with light pen; day light illuminator and cassette or memory card for job memories)
- Chromed cylinders
- Programmable automatic blanket cylinders wash up via CP2000
- Programmable automatic impression cylinders wash up via CP2000
- Programmable automatic rollers wash up via
CP2000
- Autoplate (semi automatic plate loader) with Bacher Control 2000 register system
- High-pile delivery
- Coating unit with Tresu chamber duct coating system (1 anilox rollers)
- Automatic sheet de-curler
- Powder sprayer Grafix
- Steel plate on delivery
- IR (Infra red) - Dryer
- Oil drip pan, Tools, Documentations
- Complete with all standard parts and accessories
