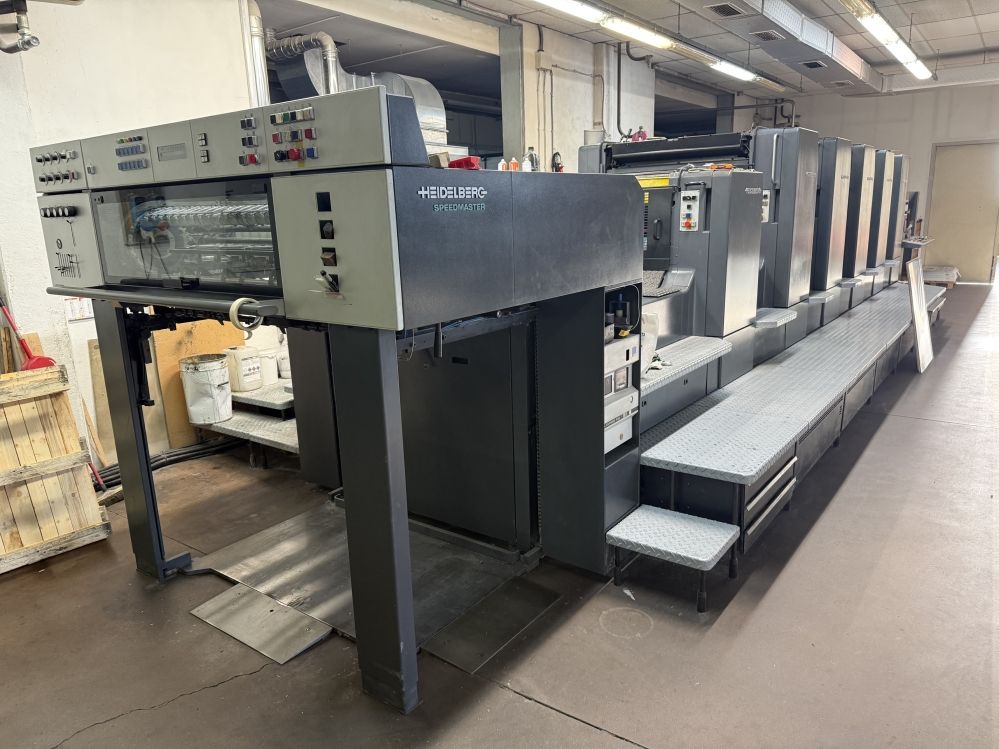

Heidelberg SM102-5L 720 x 1020 mm

Approx. 115 mill. impressions
Sheet-fed offset press - Printing units: 5+varnish unit
Straight machine
High pile delivery

Technical features:
Speed 15.000 sheet/h
Max paper size 720 x 1020 mm
Min paper size 280 x 420 mm
Thickness 0,04-0,6 mm
Print area 700 x 1020 mm
Plate 790 x 1030 mm Thickness 0,30 mm
Blancket 1045 x 790 mm Thickness 1,90 mm
Dimensions:
L. 12,0 mt.
P. 3,0 mt.
H. 2,1 mt.
Power Kw 85 (without dryer)
Weight 40.000 Kg.circa

Accessories included:
- Fully equipped
- Steel plate on feeder and delivery with ramp (for plastic or wooden pallets)
- Stream feeder with belt
- Electronic double sheet detection
- Electromechanic double sheet detection
- Electronic side lay control, fotoelectronic and akustic
- Anti-static on feeder and delivery
- Alcolor continuous dampening system with Technotrans's alcohol metering; cooling and re-circulation unit system
- Preset (autom. paper size and thickness setting)
- CPTronic - CPC1.04 control and diagnosis; self diagnostic;Remote inking; dampening; axial, circumferential and diagonal register control
with light pen; day light illuminator and cassette or memory card for job memories
- Programmable automatic blanket cylinders
- Programmable automatic rollers wash up
- Autoplate (semi automatic plate loader) with Bacher Control 2000 register system
- All cylinders chromed
- Lack unit conventional
- IR dryer
- Powder sprayer device
- High pile delivery
- Automatic sheet de-curler
- Oil drip pan, Tools, Documentations
- Complete with all standard parts and accessories
