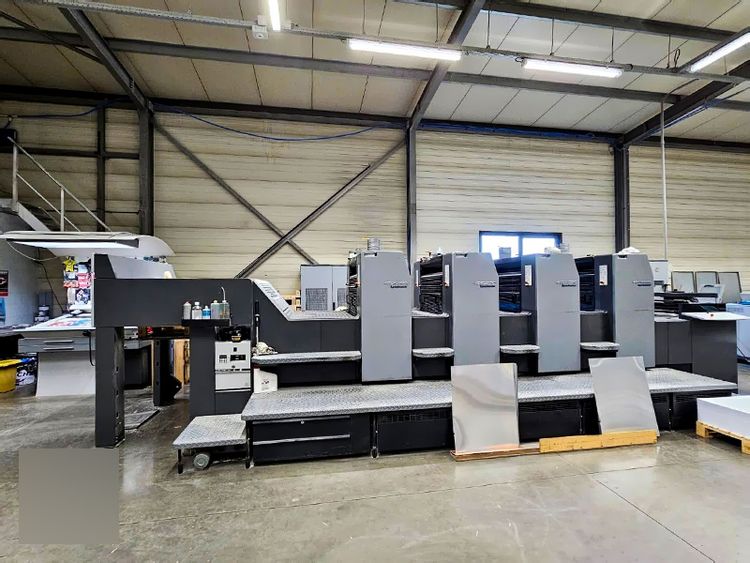

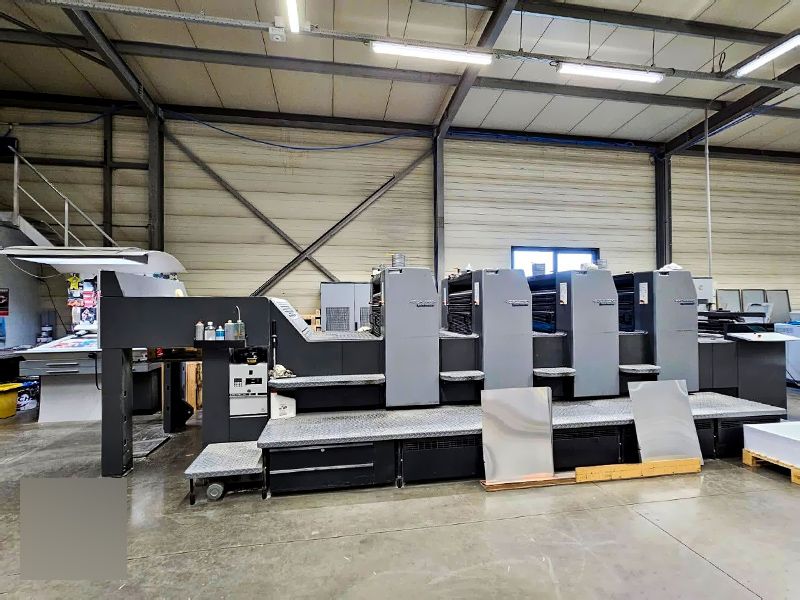

Heidelberg SM 74-4 PH 530x740 mm

Max. format 530x740 mm (20.87 × 29.13 in)
Min. format 210x280 mm
Thickness of printed materials 0.04–0.6 mm
Speed ​​up to 15,000 sheets/hour
Power supply 3x400 V, 50 Hz
Installed power 60.5 kW
Dimensions 7'630x2'950x1'870 mm
Net weight 19'040 kg

Equipment:
Vacuum feeder with steel plates,
electro-mechanical double-sheet sensor,
electronic side mark, Alcolor Vario
humidification with Technotrans beta.c refrigerator automatic maintenance of the Alcosmart AZR alcohol level , tempering of ink units
Autoplate plate change all automatic washes
CP2000 control panelwith touch-screen
Axis Control spectrophotometerbuilt into the CP2000, turning device (4/0, 2/2)
High acceptance of graphite dust Grafix Alphatronic 200
