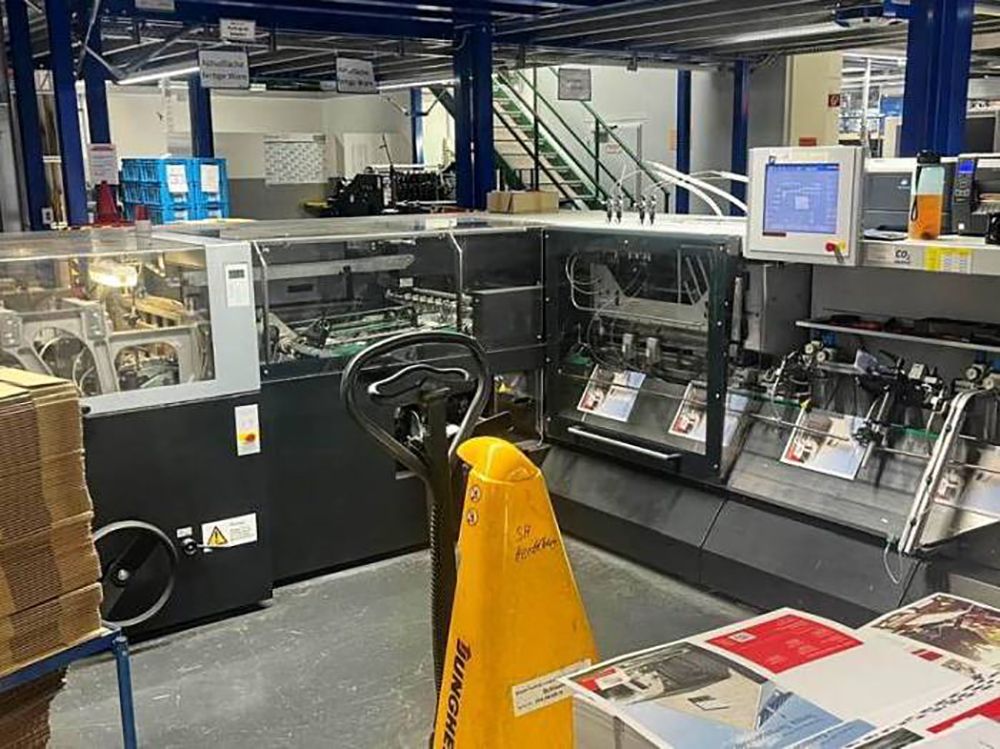

Heidelberg ST 500 Saddle-Stitcher Line

Max. size untrimmed (man.fed): 330x500 mm
Max. size untrimmed (auto fed): 128x80 mm
Max. size trimmed with Lap: 475x315 mm
Speed: 13.000 cycles/h
Stock thickness: up to 1.5 mm
Product thickness max.: 12 mm

Automation package- touch-screen control for all functions
automatisc size presettingof all components
5 automatic drum feeder (4x DVU/standup 1x DHU/laying)

Equipped with :
Mobile version
narrow format devices
chromed surfaces of transport elements
1 cover feeder CHU
clocked pressure air
sequential feeder control
sheet length control
stitching station HM-500
stitching heads HD (3x standard 2x ringeye)
quick action device for stitching heads
jumbo spool carrier
stitching wire transport devices
staples-control from below HKKU
eject-system and delivery for failed-products
trimmer TR-500
cut control incl. incl. eject gate
small size transport device
center cut device MS
punch cut-system with high pressure air-blasting
several punching dies (6 8 mm) with air connect
split cut device for small-sizes
several knife-sets
chip funnel
compensating stacker HD-CHA automatic (with presetting)
roller delivery table
full compressor support for all feeder as PIAB system
