Helma CF 40 Copy Milling Machine
Ref :
2773920-15-MT
Condition :
Used
Manufacturer :
Helma
Model :
CF 40
Short Description :
Copy Milling Machine
Year(s) :
-
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Copy milling machine with two width-adjustable spindles
For producing double-sided profiled wood
Table dimensions: 700 x 1120 mm
Diameter of the two working spindles: 30 mm
Spindle speed: 10,500 rpm
Max. milling height: 100 mm
Vertical adjustment of the cutter heads/cutters for profile correction: 10 mm
Max. center-to-center distance between spindles: 450 mm
Center-to-center distance between feed shafts: 235 mm
Spindle motors: 2 x 5.5 kW
Feed motor: 0.37 kW
Feed speeds: 1.8 – 10 m/min, infinitely variable
Air consumption: max. 20 l/min

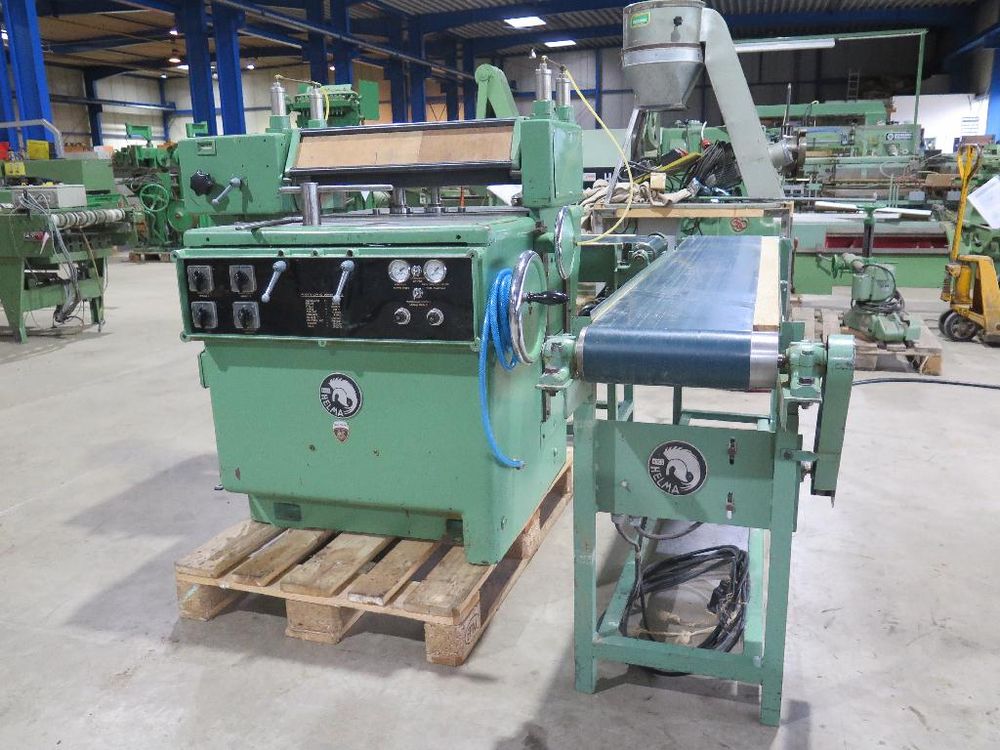

The images show an identical machine.
The machine can be purchased with or without a workpiece return system.
Net machine weight: 900 kg
