Hera UM II / 2000 x 2.5 Sheet width 2,020 mm
Ref :
2745469-3-AW
Condition :
Used
Manufacturer :
Hera
Model :
UM II / 2000 x 2.5
Sheet Size :
Sheet width 2,020 mm
Year(s) :
-
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)

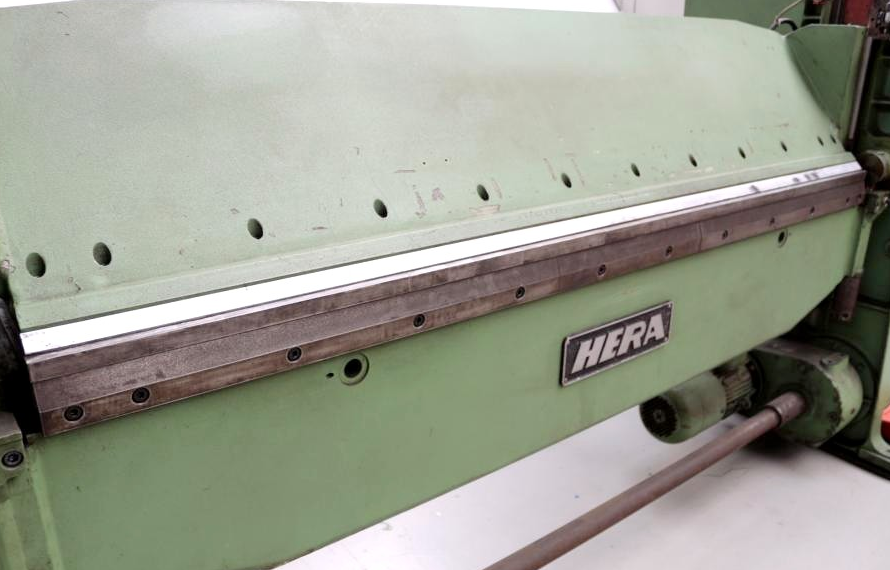

HERA UM II / 2000 x 2.5
Sheet width 2,020 mm
Plate thickness 2.5 mm ST
Upper clamping bar adjustment 250 mm
Lower beam adjustment 80 mm
Bending speed 5.5 sec / stroke
Bending angle max. 0–180 °
Control conventional
Work height max. 930 mm
Back stop adjustable approx. 215 mm
Engine output 2.6 kW
Weight 1,750 kg
Machine dimensions 2,800 × 1,200 × 1,450 mm
Robust electric-driven folding machine
Bending angle adjustment via electric potentiometer
Manual backgauge with handwheel adjustment from rear
Manual lower beam adjustment
1 × freely movable double foot switch
Main switch at the front
