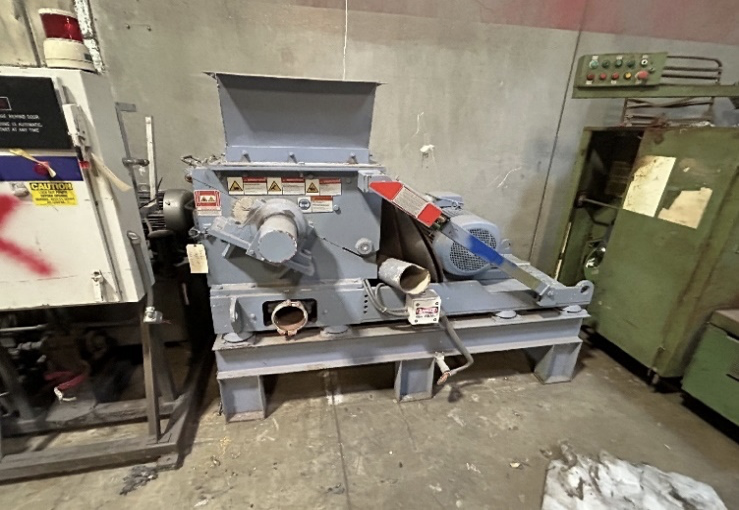

Herbold SMS 45/60 Disintegrator

Herbold SMS 45/60 Disintegrator is large,
heavy-duty disintegrator designed and built to
destroy high volumes of top secret / classified documents quickly and easily.
The cutting chamber incorporates 8 knives (5 rotor, 3 bed) to
achieve an impressive throughput of 1,100 pounds per hour when equipped
with a high security waste screen to meet NSA particle size requirements.

Key Features and Components:
Sturdy welded steel feed hopper with ribs for strength and rigidity.
Heavy-duty solid plastic flaps prevent material fly back.
Hinged two-piece welded steel upper and lower housing units
Two bed knives mounted to opposite sides of the dividing surface.
A third flat knife mounted to the deflection wedge and fitted as
a single element in the upper housing.
Hand winch for easy access to cutting chamber
Heavy-duty open rotor with 5 knives
Double cross cutting action – the rotor and bed knives are mounted at
inclined angles opposed to each other thus forming a true scissor cut for consistent cutting
Knives manufactured from high quality D2 chrome nickel tool steel.
Knife adjustment jig reduces downtime
Drop down screen cradle for easy front access
Flat welded steel base frame with anti-vibration pads
Oversized solid flywheel
75 kW (≈90 HP) three-phase motor
No upper hopper
