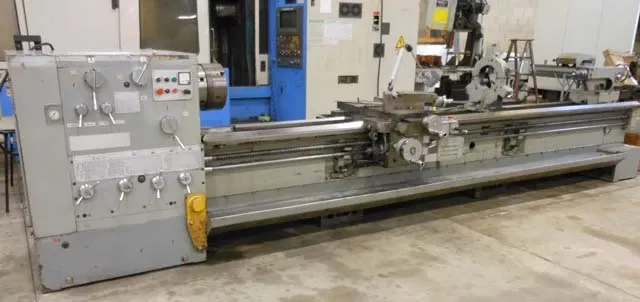

Hercules Engine Lathe 1250 rpm SPM-630X4000

Swing over bed 25"
Swing over gap 35"
Swing over cross slide 16"
Height of centers 12"
Max weight between centers 3306 lbs
Distance between centers 157.480"
Cross slide stroke 13"
Spindle bore 4.1"
Spindle nose D-A-11 camlock
Speed range 16–1250 rpm
Longitudinal feed range 0.001–0.16 mm/rev
Metric threading range 0.5–0.80 mm
Inch threading range 0.64–2.5 TPI
Whitworth thread range 160–1 pitch/inch
Module thread range 0.5–40 module
Diametrical pitch thread range 160–2 DP
Tailstock taper 5 MT
Quill diameter 3.14"
Quill stroke 8.86"
Electrics 480/3/60

Features
Inch threading
Metric threading
Taper attachment
Power rapid traverse
Work light
8" roller bearing steady rest
Thread chasing dial
Coolant
Tailstock with live center
12 1/2" 3-jaw Rohm chuck
Chuck guard
