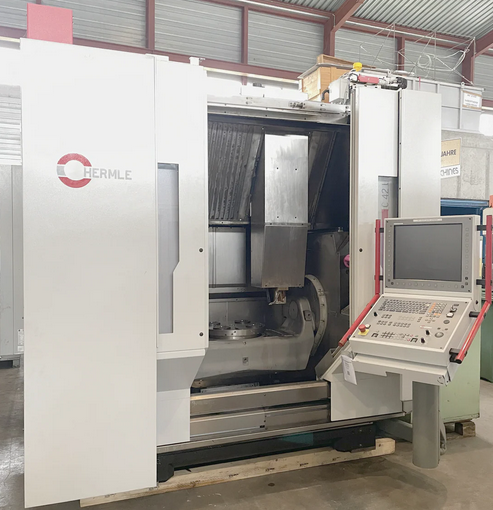

Hermle C 42 U 5 Axis

Number of axes: 5
Table length: 400 mm
Table width: 400 mm
Number of T-slots: 5
T-slot width: 14H7 mm
Maximum table load: 450 kg
X-axis travel: 800 mm
Y-axis travel: 800 mm
Z-axis travel: 550 mm
A-axis swivel angle: ±130°
Table speed: 30 t/min
Tool changer: 42-position
Additional tool magazine: 160 places
Spindle nose: HSK-A63
Spindle speed: 0–18,000 t/min
Rapid traverse X-axis: 45 m/min
Rapid traverse Y-axis: 45 m/min
Rapid traverse Z-axis: 40 m/min
Air supply: 6 bar
Voltage: 3x400 V, 50 Hz
Spindle power: 42 kW
Maximum torque: 148 Nm
Total power required: 37 kVA
Machine weight: 13,500 kg
Machine dimensions (L x W x H): 5000 x 2450 x 3200 mm
Coolant through spindle: 80 bar
Air blast through milling spindle
Rotating viewing window
Interface RS232
Interface Ethernet
Interface USB
Switch cabinet air conditioner
