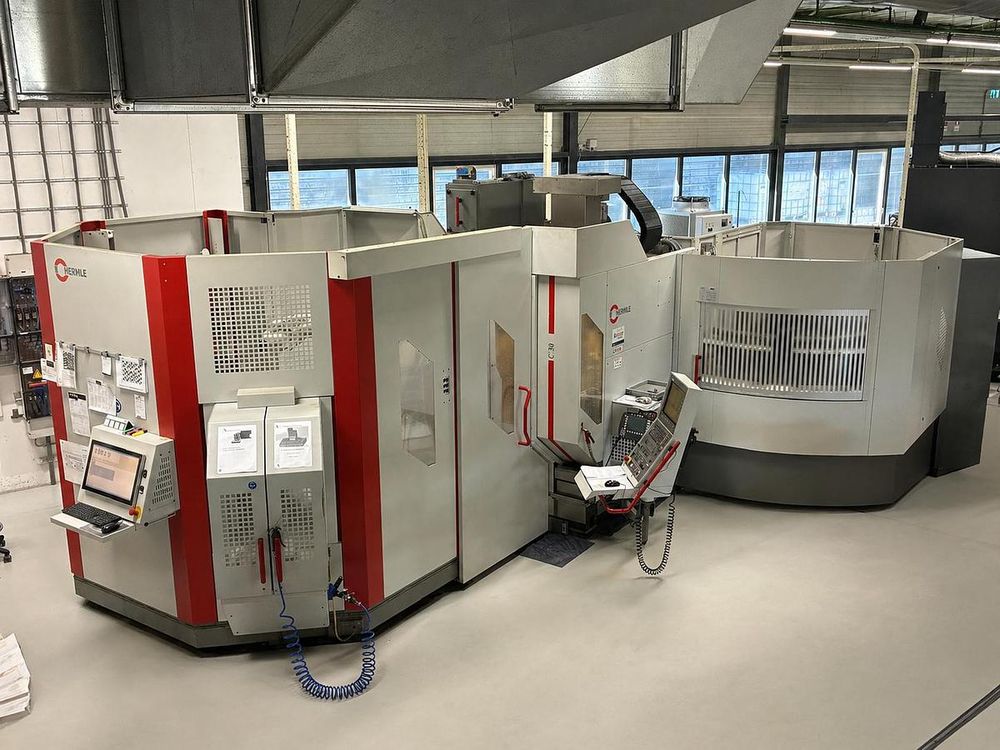

Hermle C30 U 5 Axis

X Axis Travel: 650 mm
Y Axis Travel: 600 mm
Z Axis Travel: 500 mm
Rapid Traverse X/Y/Z: 45 m/min
A Axis Travel: -115° to +115°
C Axis Travel: 360°
Control: Heidenhain iTNC 530
Table Size: Ø280 mm
Maximum Table Load: 300 kg
Spindle Speed: 20 – 18,000 RPM
Spindle Taper: HSK-A63
Spindle Power: 10 kW (100%)
Spindle Power: 13 kW (40%)
Tool Capacity: 32 Tools
Tool Capacity: 157 Tools (ZM 157)
Machine Weight: 10,000 kg
RS1 System Weight: 4,000 kg
Tool Magazine Weight: 2,500 kg
Footprint: 6.5 m x 4.5 m

Extended Tool Magazine ZM 157
Pallet System RS1 with KUKA Robot
Pallets Included
Soflex Control System
NC Swivel Table
Chip Conveyor
6-Fold Media Through-Spindle
Eccentric A-Axis Position
Through Spindle Coolant (40 – 80 bar)
Coolant Filtration System
Chip Cart 450 L
Air Blow Device
Air Through Spindle
Thermal Compensation iTNC
Electronic Handwheel
Renishaw Probe
Oil Mist Extraction
