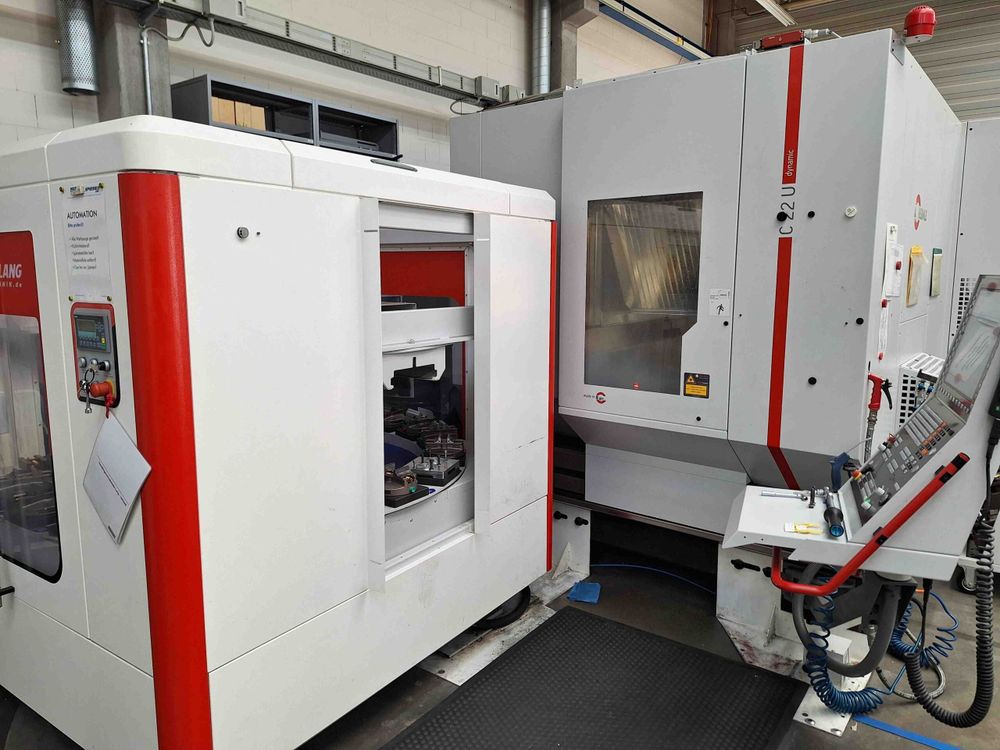

Hermle C22 U 5 Axis

HERMLE C22 U
Year: 2016

Travel X/Y/Z: 650 / 600 / 500 mm
Rapid traverse in all axes: 45 m/min
NC rotary/swivel table diameter: 630 mm
Table load capacity: 1,000 kg
A-axis swivel range: +30° to -115°
Spindle speed: 18,000 rpm
Spindle power (100% / 40%): 10 / 15 kW
Torque drive in C-axis for highest positioning accuracy
Tool changer: 55 stations
Tool holder: HSK A63
Additional magazine with 43 positions (total 98 tools)
Tool diameter: 80 mm (125 mm with free adjacent slots)
Maximum tool length: 300 mm
Maximum tool weight: 8 kg
Control: Heidenhain iTNC 640
Automation package front
Automatic cabin door
Heidenhain electronic handwheel
High-pressure cooling 80 bar through spindle
Air blast through spindle center
Renishaw probe
Tool measurement and breakage control (Blum)
Oil mist extraction system
Paper band filter
Chip conveyor
