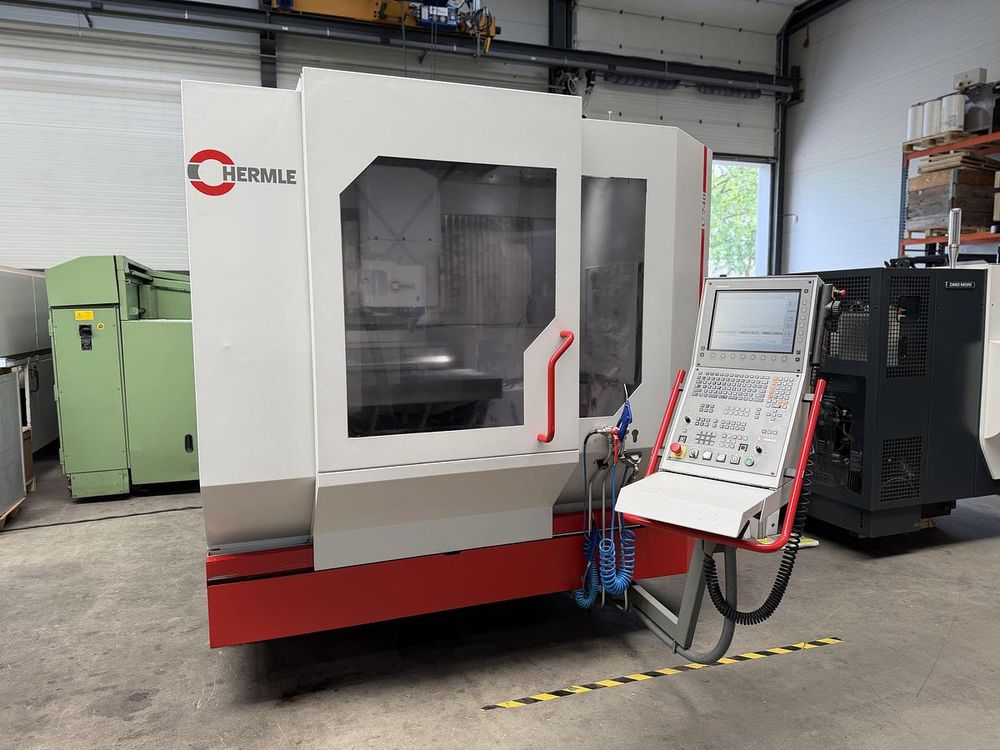

Hermle U 740 5 Axis

X-Axis Travel: 915 mm
Y-Axis Travel: 500 mm
Z-Axis Travel: 500 mm (≤90°)
Z-Axis Travel: 470 mm (>90° to 95°)
Rapid Traverse X/Y/Z: 30 / 30 / 20 m/min
Rapid Traverse B/C: 15 / 20 m/min

B-Axis Travel: -5° / +95°

Control: Heidenhain iTNC 530
Electronic Handwheel: Heidenhain
3D Probe: Heidenhain TS460
Approx. 30 Tool Holders
Original Machine Documentation
Original Control Documentation
Swivel Handle for Milling Head Adjustment
Chip Conveyor: Not Included

Spindle Speed: 20 - 12,000 RPM
Spindle Motor Power: 17.5 kW
Spindle Nose: SK40 (DIN 2079)

Tool Positions: 16

Table Size: 900 x 500 mm
Maximum Workpiece Size: 900 x 500 x 500 mm
Maximum Table Load: 700 kg

Machine Weight: 7,300 kg
Machine Dimensions: 2450 x 3404 x 2519 mm
Spindle Hours: 8,265 h
