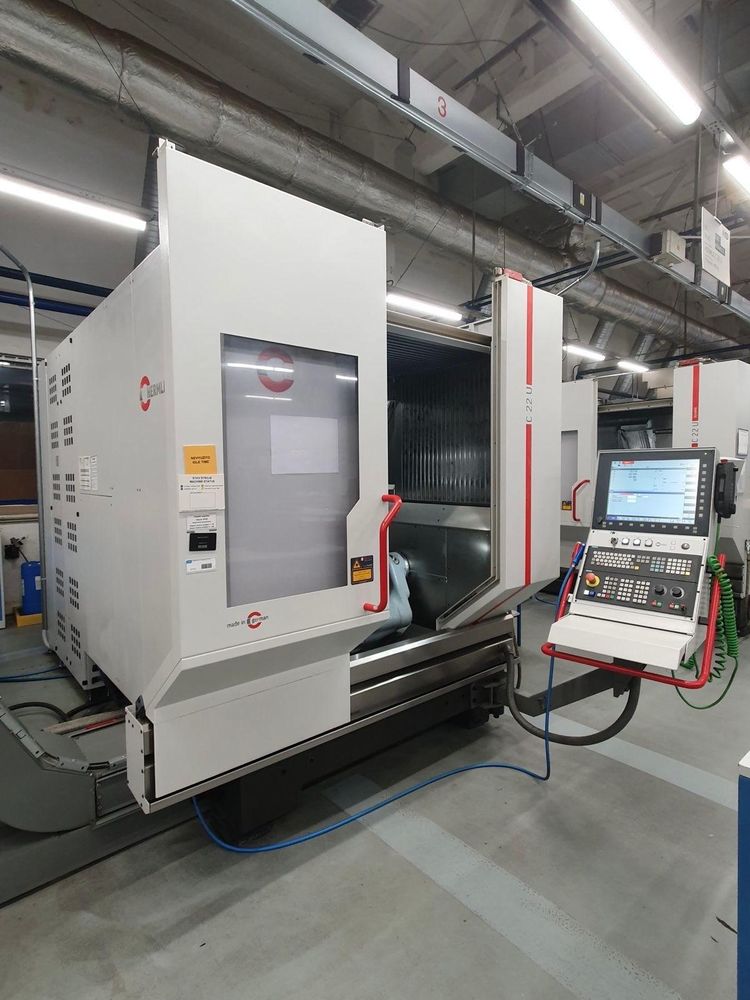

Hermle C22U 3 Axis

Axis travels (X/Y/Z) 450 x 600 x 330 mm
A axis ±135°
C axis 0.001°
Rotary table 320 mm
Table size 320 mm
Collision circle (A axis) at 0° position 610 mm
Max. and min. distance table to spindle 0–470 mm
Maximum workpiece height 370 mm
Maximum workpiece weight 300 kg
Spindle speed 15000 rpm
Spindle motor power 31 kW
Tool taper HSK A63
Tool capacity 55 stations
Maximum tool diameter 80 mm
Maximum tool diameter with empty adjacent pockets 125 mm
Maximum tool length 250 mm
Maximum tool weight 8 kg
Rapid feedrates 30 m/min
Machine weight 9000 kg

Features
5-axis simultaneous machining
Coolant system
Interlocked guards
Low-voltage light
Remote hand wheel
Spindle probe
Tool setter
Siemens 840D control
