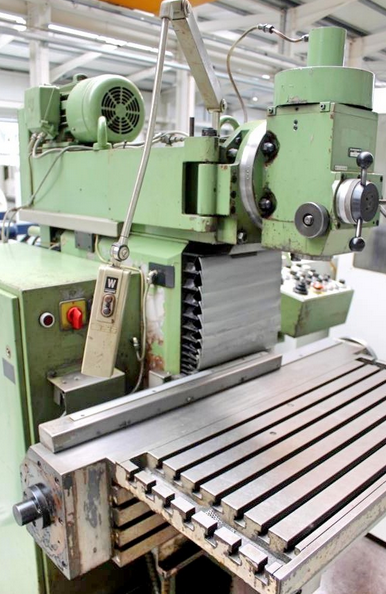

Hermle UWF 801 Vertical 2500 rpm

X-axis travel 510 mm
Y-axis travel 450 mm
Z-axis travel 410 mm
Taper in main spindle MAS BT 45° (SK40)
Table surface area 800 × 395 mm
T-slots 6
Spindle speed range 50–2500 rpm
Feed stepless 4–1600 / 4–1000 mm/min
Voltage 400 V
Total power requirement 5 kW
Machine weight 1400 kg
Machine dimensions (L × W × H) 2300 × 2300 × 1800 mm

Robust universal milling machine
Swiveling control panel
Rotatable universal milling head ±90°
Hydraulic tool clamping
Manual milling spindle feed with locking
Swiveling milling spindle protection
Stable T-slot clamping/angle table
Axis feeds with rapid traverse
Central lubrication unit
Control cabinet installed on the left
Digital display (not functional)
