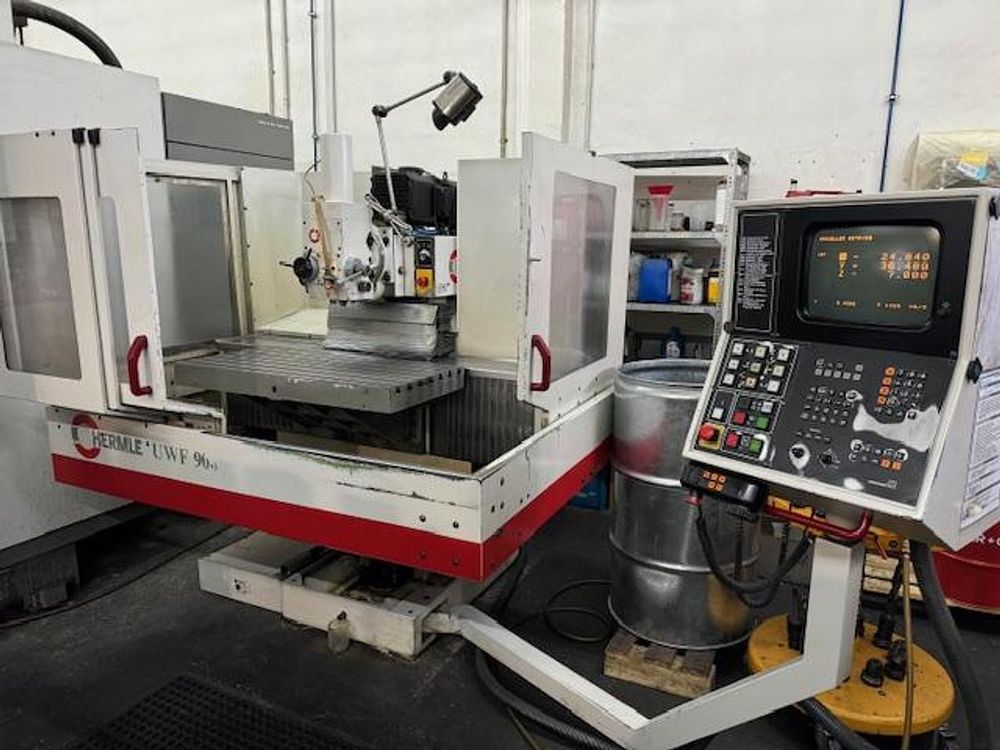

Hermle UWF 900 W Vertical 4000 rpm

X-axis travel 600 mm
Y-axis travel 400 mm
Z-axis travel 420 mm
Spindle head swivels 90° left / right
Control Heidenhain TNC 360
Table size 900 x 460 mm
Table load capacity 400 kg
Spindle taper SK 40
Quick stroke (vertical) 75 mm
Speed range 20–4000 rpm
Feed rate X/Y/Z 1–6000 mm/min
Feed rate X/Y 7 m/min
Feed rate Z 6 m/min
Total power requirement 13 kW
Machine dimensions approx. 4.0 x 3.8 x 2.0 m
Weight approx. 2300 kg
Separate production cell
Coolant system
Control panel with swivel arm
Heidenhain SK 40 touch probe
Handwheel
