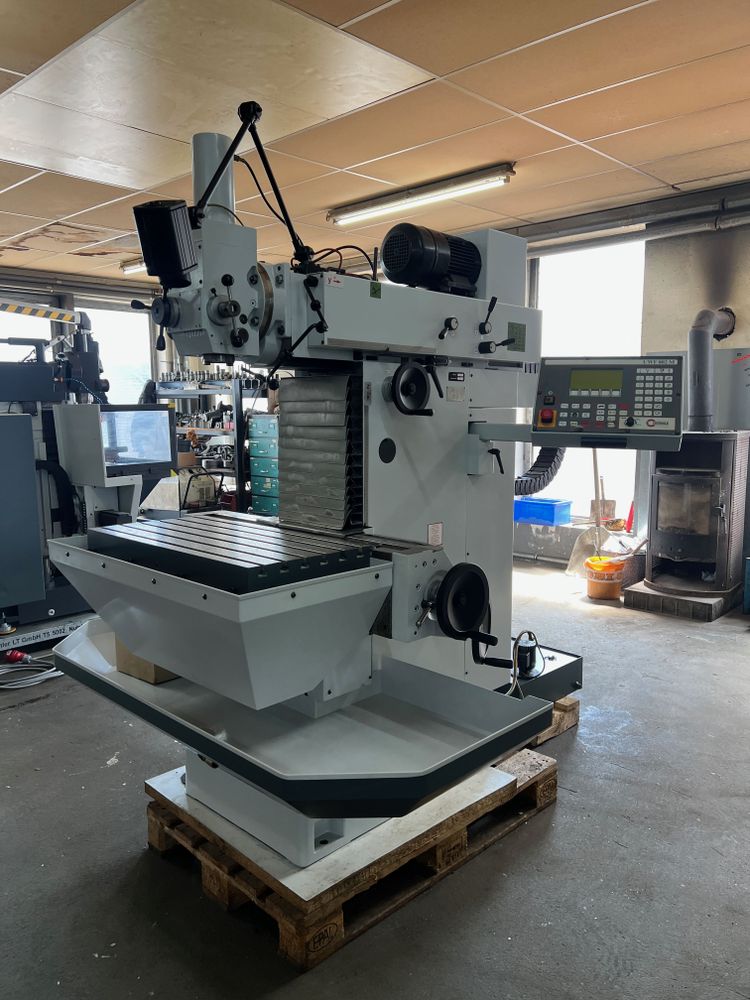

Hermle UWF 802 M 3 Axis

X-axis travel 500 mm
Y-axis travel 430 mm
Z-axis travel 400 mm
Control NC
Table size 800 × 390 mm
Spindle taper ISO 40
Spindle speed 71–3550 rpm, 18 steps
Spindle power 3 kW
Feedrate X and Y 2–1600 mm/min stepless
Feedrate Z 2–1000 mm/min stepless
Rapid traverse X and Y 1.6 m/min
Rapid traverse Z 1 m/min
Spindle speed via 18 gearbox steps
Vertical milling head tiltable left and right
Hydro-mechanical tool clamping vertical and horizontal
Automatic central lubrication
Coolant system included
Electrical cabinet fixed on the machine
Fixed angle table
Operating manual and circuit diagram
Machine dimensions 2000 × 1800 × 1950 mm
Machine weight 1750–2000 kg
