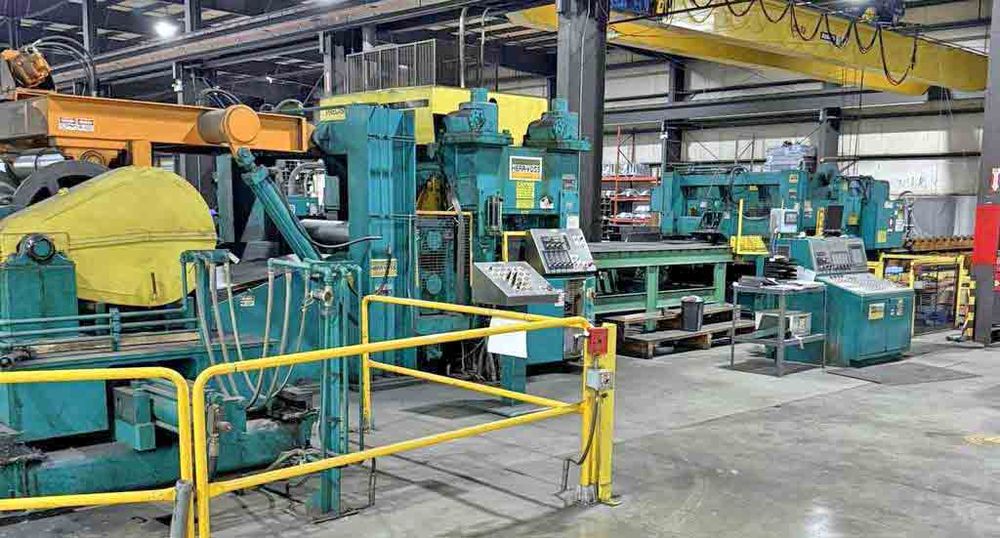

Herr Voss CUT TO LENGTH LINE with New Red Bud Stretch Leveler Coil weight: 60000 lb

Material width: 36"–74"
Material thickness: 0.075"–0.500" at 45000 PSI yield
Material thickness: 0.375" at 80000 PSI yield
Coil ID range: 20"–34"
Coil OD max: 84"
Jog speed: 50 fpm
Line speed: 20–175 fpm
Line direction: left to right
Leveler thickness range: 0.096"–0.500"
Leveler work rolls: 11
Leveler roll diameter: 4.50"
Leveler roll face: 88"
Leveler motor: 200 hp DC motor, 850/1700 rpm, 500 V
Stacker capacity: 40000 lb
Min sheet length: 24"
Max stacked sheet: 24'
Runout conveyor length: 40'
Max stretch clamp center distance: 240"
Stretch cycle time: 5.0 sec
Hydraulic power: 150 hp AC / 85 gpm
Electrical requirement: 460 V, 3-phase
Air requirement: 80 psi
Max ambient temperature: 100 F
Min ambient temperature: 35 F
Delivery time: 14 months

Features / Equipment

Entry coil ramp
Three coil storage
Hydraulic lever-type holding mechanism
Cone-type uncoiler
Motorized feed-up AC motor
Air clutch on one head
Water-cooled brake on each head
Sliding base on each head
Coil lift with 12" bore hydraulic cylinder
Threading unit
Motorized overarm holddown roll
Steel roll powered by AC motor
Hydraulic actuated peeler table
Entry side guides with powered width adjustment
Precision leveler 4-high
Five flights of motorized backups
Squaring guides with powered width adjustment
Powered tailout pinch rolls
Hydraulic cylinder open/close
Entry encoder roll
Mechanical shear
Blade gap adjustment control
Straight blade rake
Material holddowns
Drop-type stacker
Side guide retainers with powered side tap
Main operators control panel
Main hydraulic power unit
Mechanical and electrical drawings
Operator's manual
