Herr Voss HERR VOSS POLISHING LINE

Material width range: 16 in – 62 in
Material thickness range (polishing): 0.135 in – 0.200 in
Material thickness range (grinding): 0.200 in – 0.210 in
Coil inner diameter: 20 in – 24 in
Maximum coil weight: 80,000 lb
Line speed (polishing): 20 – 100 ft/min
Line speed (grinding): 10 – 50 ft/min
Strip tension: 55,000 lb
Material type: 300 series stainless steel
Material type: 400 series stainless steel
Entry coil car

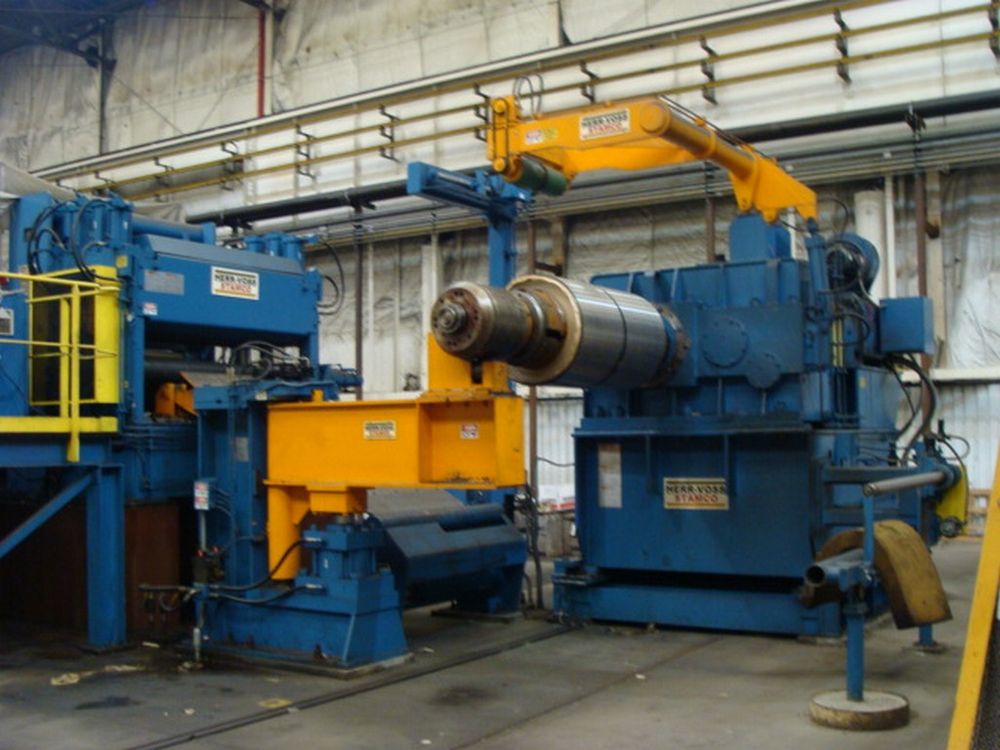

Mandrel uncoiler with outboard bearing support
Peeler unit
Pinch roll unit
Flattener unit
Crop shear
Scrap car
Strip welder
Entry tension bridle
Entry squeegee rolls
Top polishing heads (wet): 5
Bottom polishing heads (wet): 2
Exit squeegee rolls
Swarf collection system
Swarf processing system
Coolant filter system
Fire suppression system
Cleaning section
Inspection station
Exit tension bridle
Exit crop shear
Deflector roll
Edge guide system
Recoiler with outboard bearing support
Exit coil car
