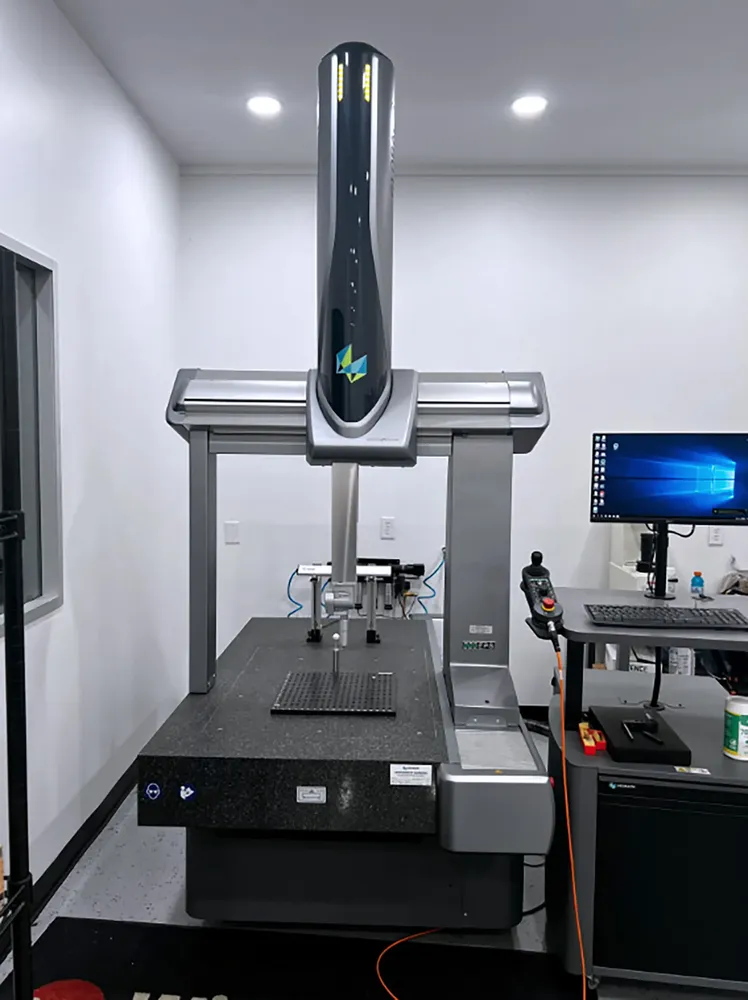

HEXAGON GLOBAL S GREEN 7.10.7

X Axis: 27.5 in (700 mm)
Y Axis: 39.4 in (1,000 mm)
Z Axis: 26.0 in (660 mm)
Surface Plate: 27.6 × 65.0 in (700 × 1,651 mm)
Max Part Weight: 1,984 lb (900 kg)
System Resolution: 0.0002 mil (0.005 μm)
Operating Temperature: 61–79°F (16–26°C)
Power: 100/120/220/240V ±10%, 50/60 Hz, 1.6 KVA
Air Supply: 0.5 MPa minimum, ISO 8573/1 Class 4, approx. 90 Nl/min
PC-DMIS 2024.1 Software
Air Bearings on All Axes
METALLUR Linear Scales
Pneumatic Ram Counterbalance
Hexagon Air Filtration System
Probes: 0.50–8.00 mm
Probe Extensions
Probe Rack
Demo Block
Computer and Workstation
(2) Metrology Boards
(1) Calibration Sphere
CMM Modular Fixturing Kit
