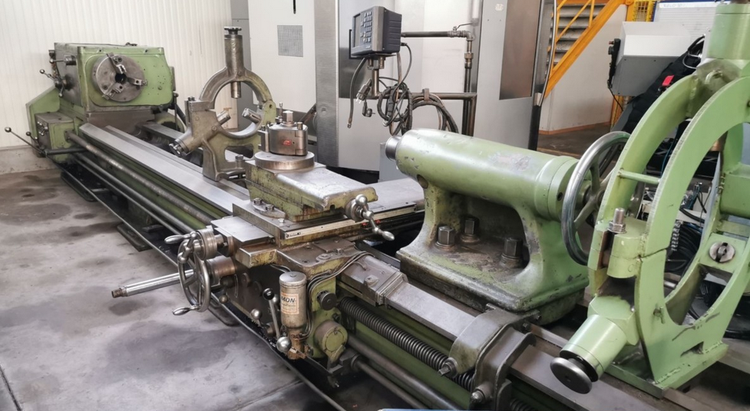

Heyligenstaedt Engine Lathe 1140 rpm 400 Ea/4000
Ref :
2786664-3-MT
Condition :
Used
Manufacturer :
Heyligenstaedt
Type :
Engine Lathe
Spindle Speed :
1140 rpm
Model :
400 Ea/4000
Year(s) :
1957
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Turning diameter over bed: 800 mm
Turning diameter over slide rest: 540 mm
Turning length: 4000 mm
Centre height: 400 mm
Centre distance: 4000 mm
Spindle speed range: 9 – 1140 rpm
Spindle bore: 96 mm
Machine weight: approx. 8.0 t
Gap bed with insert
3-jaw chuck 400 mm
4-jaw chuck 500 mm
Faceplate 800 mm
DRO on X and Z axes
MULTIFIX toolpost with inserts
2 fixed steadies
1 traveling steady
Live center
Coolant system
