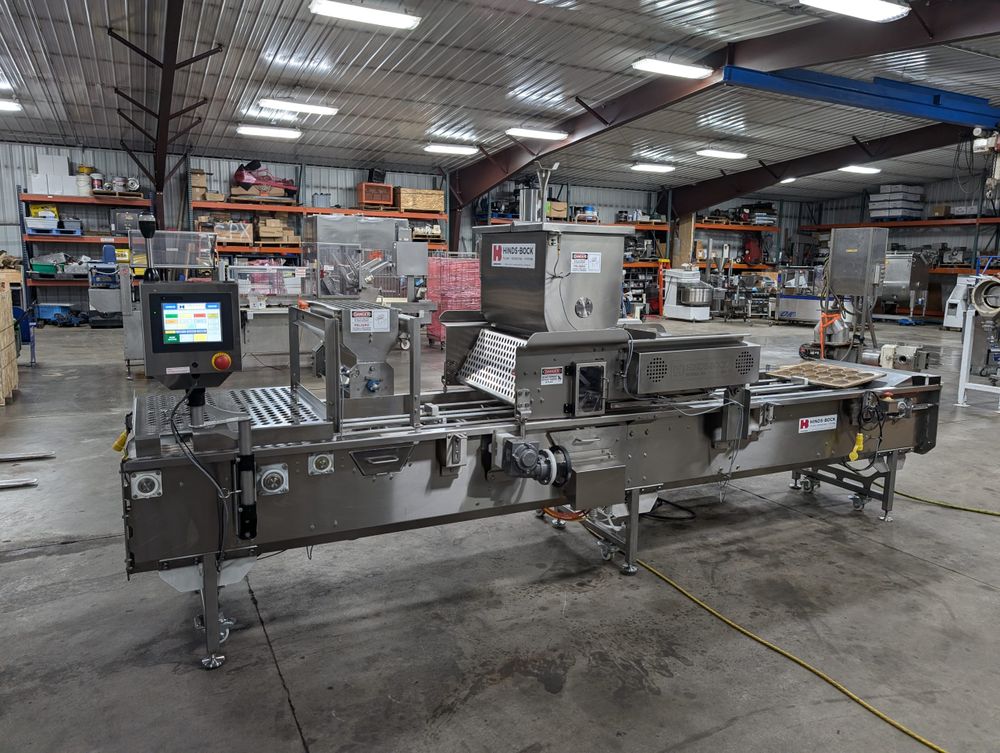

Hinds Bock 5P-32, Depositor System

Depositing System: Model 5P-32 with dual Blue poly depositing cylinders (33560321 & 33560363)
Infeed Conveyor: SS magnetic pan conveyor, 19.5″ lug spacing x 32″ wide
Main Hopper: SS construction, 18″ L x 30″ W x 25″ D with paddle agitation
Hopper Features: 6″ dia. ingredient port, 17″ x 8″ rectangular opening, level indicator
Dry Ingredient System: Separate SS hopper with agitation
Discharge Conveyor: 32″ long dual plastic belt design
Controls: Allen Bradley L18ERM PLC with Powerflex 525 VFDs
Interface: Automation Direct touch screen controls
Construction: Stainless steel throughout, washdown motors and drives
Mobility: Adjustable legs, mounted on casters
Previous Configuration: 26″ x 18″ pans, 3×5 spot pattern
Spot Specifications: 4″ diameter x 1.5″ deep
Production Speed: 35-40 rows/advances per minute
Electrical Requirements: 230V, 3-Phase, 60 Hz, 20 Amps
Overall Dimensions: 192″ L x 67″ W x 93″ H
