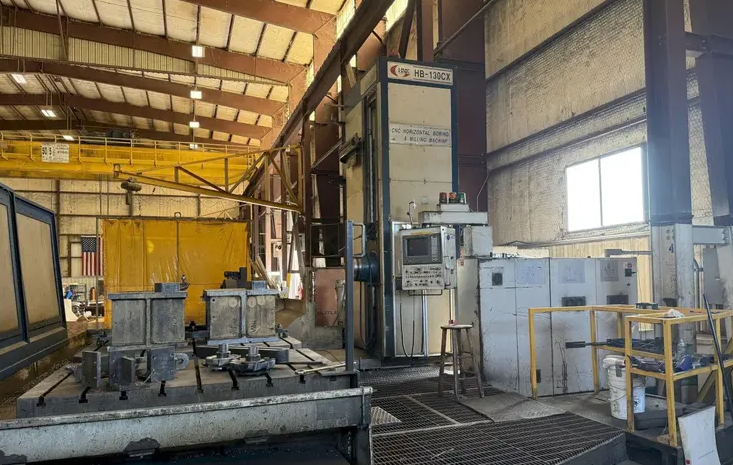

HNK HB-130CX 5.1" 2,500 RPM

X-Axis Travel: 157"
Y-Axis Travel: 90"
Z-Axis Travel: 51"
W-Axis Travel: 27.5"

Distance Spindle Nose to Table Center: 30" - 80"
Distance Spindle Center to Top of Table: 0 - 90"
Table Dimension: 63" x 157"
Rotary Table Dimension: 63" x 63"
Allowable Table Load: 33,000 lbs
Rotary Table Load: 22,000 lbs
Rotary Table Index: .001° with 90° Shot Pins
Spindle Diameter: 5.1"
Spindle Power: 35 HP
Spindle Speeds: 5 - 2,500 RPM (3 Gear Ranges)
Spindle Taper: ISO #50, 7/24 Taper
Tool Changer Capacity: 40 Tools
Tool Shank / Pull Stud: CAT 50 / MAX 403 B50T
Max Tool Weight: 55 lbs
Max Tool Length in ATC: 16"
Control: FANUC 16 CNC with Portable MPG
Coolant: Through Spindle
Chip Conveyor
Spindle Oil Chiller
Table Guarding (Currently Removed)
Machine Weight: 108,000 lbs
Machine Dimensions: 397" x 291" x 193" High
Floor Mount – No Pit Required
B-Axis Rotary Table Needs Repair
